Part Number: BUK563-100A



MFG: PHIL



D/C: 05+

Description: N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mount a...


Urgent Purchase

BUK563-100A General Description


N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mount applications. The device is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in automotive and general purpose switching applications.

BUK563-100A Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VDS  Drain-source voltage  -  -  100  V
 VDGR  Drain-gate voltage  RGS=20k  -  100  V
± VGS  Gate-source voltage  -  -  15  V
± VGSM Non-repetitive gate-source voltage  tp50s  -  20  V
 ID Drain vurrent (DC)  Tmb=25  -  13  A
 ID Drain vurrent (DC)  Tmb=100  -  9  A
 IDM  Drain vurrent (pulse peak value)  Tmb=25  -  52  A
 Ptot  Total power temperature  Tmb=25  -  75  W
 Tstg  Storage temperature  -  -55  175
 Tj  Junction temperature  -  -  175

BUK563-100A Typical Application

These products are not designed for use in life support appliances, devices or systems where malfunction of these
products can be reasonably expected to result in personal injury.  Philips customers using or selling these products
for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting
from such improper use or sale.

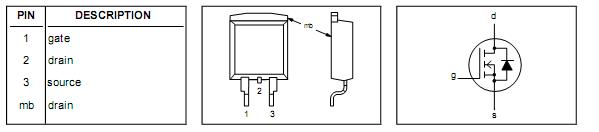

BUK563-100A Connection Diagram

BUK563-100A Connection Diagram

BUK563-100A datasheet

BUK563-100A
PDF/DataSheet Download

  • Datasheet: BUK563-100A
  • File Size: 76768 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
