BUT11APX

Transistors Bipolar (BJT) RAIL PWR-MOS

product image

BUT11APX Picture
SeekIC No. : 00211555 Detail

BUT11APX: Transistors Bipolar (BJT) RAIL PWR-MOS

floor Price/Ceiling Price

Part Number:
BUT11APX
Mfg:
NXP Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : NPN Collector- Emitter Voltage VCEO Max : 450 V
Maximum DC Collector Current : 5 A DC Collector/Base Gain hfe Min : 10
Configuration : Single Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SOT-186A
Packaging : Rail

Description

Emitter- Base Voltage VEBO :
Maximum Operating Frequency :
Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Maximum DC Collector Current : 5 A
DC Collector/Base Gain hfe Min : 10
Packaging : Rail
Collector- Emitter Voltage VCEO Max : 450 V
Package / Case : SOT-186A


Application

These products are not designed for use in life support appliances, devices or systems where malfunction of these
products can be reasonably expected to result in personal injury.  Philips customers using or selling these products
for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting
from such improper use or sale.

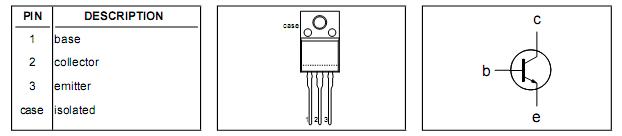

Pinout

  Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VCESM  Collector to emitter voltage  VBE=0V  -  1000  V
 VCEO  Collector to emitter voltage (open base)    -  450  V
 VCBO  Collector to base voltage (open emitter)    -  1000  V
 IC  Collector current (DC)    -  5  A
 ICM  Collector current peak value    -  10  A
 IB  Base current (DC)    -  2  A
 IBM  Base current peak value    -  4  A
 Ptot  Total power dissipation  Ths25  -  32  W
 Tstg  Storage temperature    -65  150
 Tj  Junction temperature    -  150



Description

Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers. Features of BUT11APX exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.
