BUT12F
-
Suppliers
DataSheet
General Description
BUT12F Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MAX. | UNIT |
| VCESM | collector-emitter peak voltage BUT12F BUT12AF |
VBE=0 | 850 1000 |
V V |
| VCEO | collector-emitter voltage BUT12F BUT12AF |
open base | 400 450 |
V V |
| VCEsat | collector-emitter saturation voltage | see Figs 7 an 9 | 1.5 | V |
| ICsat | collector saturation current BUT12F BUT12AF |
6 5 |
A | |
| IC | collector current (DC) | see Figs 2 and 4 | 8 | A |
| ICM | collector current (peak value) | see Fig.2 | 20 | A |
| Ptot | total power dissipation | Th25;see Fig.3 | 23 | W |
| tf | fall time | resistive load;see Figs 11and 12 | 0.8 | s |
BUT12F Features
High-voltage, high-speed, glass-passivated NPN power transistor in a SOT186 plastic package.
BUT12F Typical Application
*Converters
*Inverters
*Switching regulators
*Motor control systems.
*Inverters
*Switching regulators
*Motor control systems.

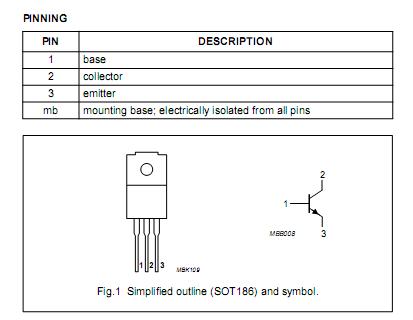

BUT12F Connection Diagram
