Part Number: BUT12XI
Description: Improved high-voltage, high-speed glass-passivated npn power transistor in a plastic full-pack envelope specially suite...
- Table of contents:
BUT12XI
-
Suppliers
DataSheet
General Description
BUT12XI General Description
Improved high-voltage, high-speed glass-passivated npn power transistor in a plastic full-pack envelope specially suited for overhead/high frequency lighting ballast applications and converters, inverters, switching regulators, motor control systems, etc.
BUT12XI Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN | MAX | UNIT |
| VCESM | Collector-emitter voltage peak value | VBE = 0V | 1000 | V | |
| VCEO | Collector-emitter voltage (open base) | 450 | V | ||
| VEBO | Emitter-base voltage(open collector) | 8 | V | ||
| IC | Collector current (DC) | 20 | A | ||
| IB | Base current (DC) | 4 | A | ||
| IBM | Base current peak value | 6 | A | ||
| Ptot | Total power dissipation | Tmb 25 | 33 | W | |
| Tstg | Storage temperature | -65 | 150 | ||
| Tj | Junction temperature | 150 |
BUT12XI Typical Application
These products are not designed for use in life support appliances, devices or systems where malfunction of these
products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

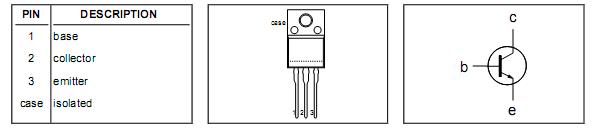

BUT12XI Connection Diagram
