Product Details

Description



Application

*Converters
*Inverters
*Switching regulators
*Motor control systems.




Pinout

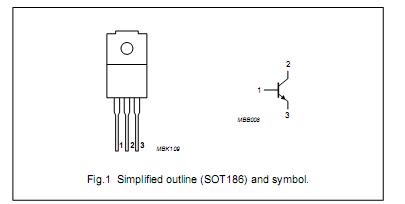

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCESM collector-emitter peak voltage
BUT18F
BUT18AF		 VBE=0 - 850
1000		 V
V
VCEO collector-emitter voltage
BUT18F
BUT18AF		 open base - 400
450		 V
V
ICsat collector saturation current - 4 A
IC collector current (DC) see Fig.4 - 6 A
ICM collector current (peak value) see Fig.4 - 12 A
IB base current (DC) - 3 A
IBM base current (peak value) - 6 A
Ptot total power dissipation Th25; see Fig.2; note 1 - 20 W
Th25; see Fig.2; note 2 - 33 W
Tstg storage temperature -65 +150
Tj junction temperature - 150





Description

High-voltage, high-speed, glass-passivated NPN power transistor BUT18F in a SOT186 package with electrically isolated mounting base.
