Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance


Pinout

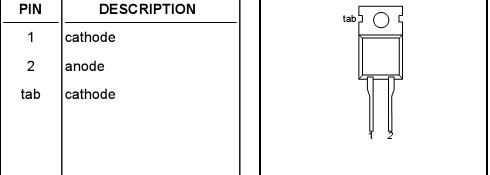

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM Peak non-repetitive peak
reverse voltage		 -800 -1000 -1200
800 1000 1200		 V
VRRM Peak repetitive reverse
voltage		 800 1000 1200 V
VRWM Crest working reverse voltage 600 800 1000 V
I F(AV) Average forward current1 square wave; = 0.5;
Ths 83
sinusoidal; a = 1.57;
Ths 90

8

7

 A
I F(RMS) RMS forward current 11 A
IFRM Peak repetitive forward current t = 25 s; = 0.5;
T 83 		16 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
t = 8.3 ms
sinusoidal; Tj= 150 prior to surge;
with reapplied VRWM(max)		 65
71

 A
I2t I2t for fusing t = 10 ms 28 A2s
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic. BY329 are intended for use in TV receivers, monitors and switched mode power supplies.

The BY329 series is supplied in the conventional leaded SOD59 (TO220AC) package.
