BY559-1500U

Features:

* Low forward volt drop
* Low forward recovery voltage
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance

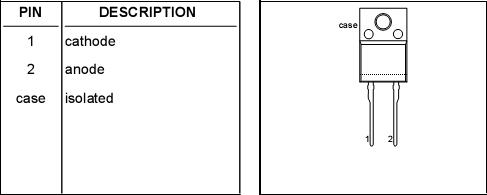

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse voltage			1500	V
VRWM	Crest working reverse voltage			1300	V
I FWM	Peak working forward current	f = 120 kHz;		10	A
I FRM	Peak repetitive forward current	t = 100 s		150	A
IFSM	Peak non-repetitive forward current	t = 10 ms sinusoidal; Tj = 150  prior to surge; with reapplied VRWM(max)		160	A

Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

A double diffused rectifier diode in a plastic envelope, featuring fast forward and reverse recovery and low forward voltage. BY559-1500U is intended for use as a damper diode in horizontal deflection circuits of large screen monitors and workstations .

The BY559 series BY559-1500U is supplied in the conventional leaded SOD59 (TO220AC) package.
