BY8208

Features: * Plastic package* Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* 40% overvoltage allowed during 5 sec* Guaranteed avalanche energy absorption capability* Very low reverse recovery time* Soft-recovery switching characteristics* Compact con...

product image

BY8208 Picture
See larger image
SeekIC No. : 004305376 Detail

BY8208: Features: * Plastic package* Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* 40% overvoltage allowed during 5 sec* Guaranteed avalanche energy absorpt...

BY8208 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BY8208
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Plastic package
* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* 40% overvoltage allowed during 5 sec
* Guaranteed avalanche energy absorption capability
* Very low reverse recovery time
* Soft-recovery switching characteristics
* Compact construction.


Pinout

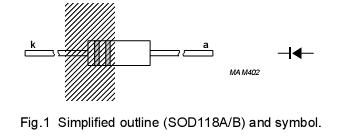

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM1 repetitive peak reverse voltage 8 KV
VRRM2 repetitive peak reverse voltage max. 5 seconds 11.2 KV
I F(AV) average forward current averaged over any
20 ms period; see Figs 2 to 5

5

 MA
IFRM repetitive peak forward current note 1
 500
 MA
Tstg storage temperature -65 +175
Tj operating junction temperature -65 +155



Description

Plastic package, BY8208 using glass passivation and a high temperature alloyed construction.

BY8208 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.

The BY8208 should be used in an insulating medium such as resin, oil or SF6 gas.
