Part Number: BYV79EB-200



MFG: Philips

Package Cooled: TO-263

D/C: 05+

Description: Ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supp...


Urgent Purchase

BYV79EB-200 General Description


Ultra-fast, epitaxial rectifier diodes intended for use as output rectifiers in high frequency switched mode power supplies.

Th BYV79EB series issupplied in the surface mounting SOT404 package.

BYV79EB-200 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 200 V
VRWM Working peak reverse
voltage		 200  V
VR continuous reverse voltage 200  V
I F(AV) Average rectified forward
current 2		 square wave; = 0.5; Tmb 120

14

 A
I FRM Repetitive peak forward current per diode t = 25 s; = 0.5;
Tmb 120		 28 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 150
160


 A
I RRM Peak repetitive reverse
surge current		 tp = 2 s; = 0.001 0.2 A
I RSM Peak non-repetitive reverse
surge current		 tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150

BYV79EB-200 Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

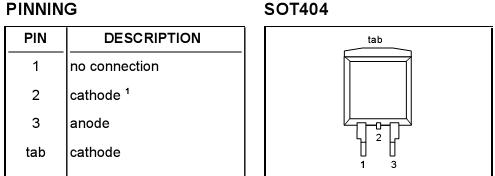

BYV79EB-200 Connection Diagram

BYV79EB-200 Connection Diagram
