Part Number: BYW29EB



MFG: PH/ST

Package Cooled: TO-



Description: Ultra-fast,epitaxialrectifierdiodesintendedforuseasoutputrectifiersinhighfrequencyswitchedmodepowersupplies.The...


Urgent Purchase

BYW29EB General Description


Ultra-fast,epitaxialrectifierdiodesintendedforuseasoutputrectifiersinhighfrequencyswitchedmodepowersupplies.

The BYW29EB series is supplied in the SOT404 surface mounting package.
The BYW29ED series is supplied in the SOT428 surface mounting package.

BYW29EB Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM repetitive peak
reverse voltage		 -150  -200
150   200		 V
VRWM Crest working reverse voltage 150   200 V
VR Continuous reverse voltage 150   200 V
I F(AV) Average forward current1 square wave; = 0.5;
Ths 83

8

 A
IFRM Peak repetitive forward current square wave;= 0.5; Tmb 128   16 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
t = 8.3 ms
sinusoidal; Tj= 150 prior to surge;
with reapplied VRWM(max)		 80
88


 A
I RRM Repetitive peak reverse current tp= 2s;= 0.001 0.2 A
I RSM Non-repetitive peak reverse current tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150

BYW29EB Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

BYW29EB Connection Diagram

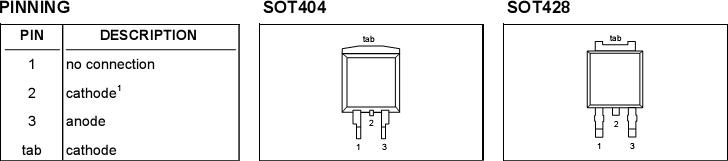

BYW29EB Connection Diagram

BYW29EB datasheet

BYW29EB
PDF/DataSheet Download
