BZV90

Features: · Total power dissipation:max. 1500 mW· Tolerance series: approx. ±5%· Working voltage range:nom. 2.4 to 75 V (E24 range)· Non-repetitive peak reverse power dissipation: max. 40 W.ApplicationGeneral regulation functions.PinoutSpecifications SYMBOL CONDITIONS MIN. MAX. UNIT ...

product image

BZV90 Picture
See larger image
SeekIC No. : 004306907 Detail

BZV90: Features: · Total power dissipation:max. 1500 mW· Tolerance series: approx. ±5%· Working voltage range:nom. 2.4 to 75 V (E24 range)· Non-repetitive peak reverse power dissipation: max. 40 W.Applicat...

BZV90 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BZV90
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Total power dissipation:max. 1500 mW
· Tolerance series: approx. ±5%
· Working voltage range:nom. 2.4 to 75 V (E24 range)
· Non-repetitive peak reverse power dissipation: max. 40 W.


Application

General regulation functions.

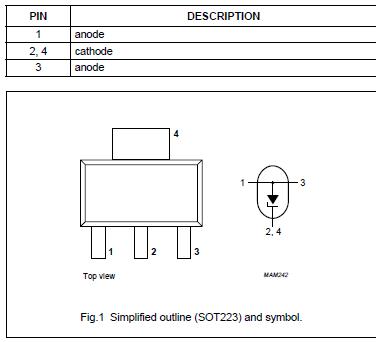

Pinout

Connection Diagram


Specifications

SYMBOL   CONDITIONS MIN. MAX. UNIT
IF continuous forward current   - 400 mA
IZSM non-repetitive peak reverse current tp = 100 s; square wave;
Tj = 25 prior to surge		 see Table
"Per type"
Ptot total power dissipation Tamb = 25; note 1 - 1500 mW
PZSM non-repetitive peak reverse power
dissipation		 tp = 100 s; square wave;
Tj = 25 prior to surge; see Fig.2		 - 40 W
Tstg storage temperature   -65 +150
Tj junction temperature   - 150



Description

·Medium-power voltage regulator diodes in SOT223 plastic SMD packages.
·The diodes are available in the normalized E24 approx. ±5% tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V (BZV90-C2V4 to C75).
