Product Details

Description



Features:

` Full upward compatibility with SAB 80C515
` Up to 24 MHz external operating frequency
500 ns instruction cycle at 24 MHz operation
` 8K byte on-chip ROM (with optional ROM protection)
alternatively up to 64K byte external program memory
` Up to 64K byte external data memory
` 256 byte on-chip RAM
` On-chip emulation support logic (Enhanced Hooks Technology TM)
` Six 8-bit parallel I/O ports
` One input port for analog/digital input
` Full duplex serial interface (USART)
4 operating modes, fixed or variabie baud rates
` Three 16-bit timer/counters
Timer 0 / 1 (C501 compatible)
Timer 2 for 16-bit reload, compare, or capture functions
` 8-bit A/D converter
8 multiplexed analog inputs
programmable reference voltages
` 16-bit watchdog timer
` Power saving modes
Idle mode
Slow down mode (can be combined with idle mode)
Software power-down mode
` 12 interrupt sources (7 external, 5 internal) selectable at four priority levels
` ALE switch-off capability (C515-LM/1RM only)
` P-LCC-68 and P-MQFP-80 packages
` Temperature Ranges: SAB-C515 TA = 0 to 70SAF-C515    TA = -40 to 85   SAH-C515  TA = -40 to 110 (max. operating frequency: 16 MHz)


Pinout

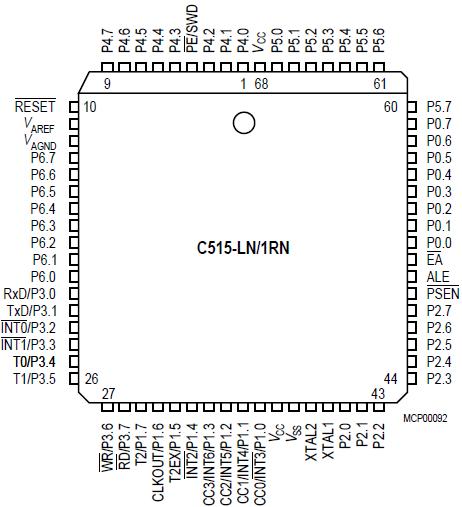

Connection Diagram


Specifications

Ambient temperature under bias (TA) ........................................ 0 to + 110
Storage temperature (TST) ................................................... 65 to + 150
Voltage on VCC pins with respect to ground (VSS) .................... 0.5 V to 6.5 V
Voltage on any pin with respect to ground (VSS) ............ 0.5 V to VCC + 0.5 V
Input current on any pin during overload condition............. 10 mA to + 10 mA
Absolute sum of all input currents during overload condition ..............| 100 mA |
Power dissipation...........................................................................................TBD
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for longer periods may affect device reliability. During overload conditions (VIN > VCC or VIN < VSS) the Voltage on VCC pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
