C9714
-
Suppliers
DataSheet
General Description
C9714 Maximum Ratings
Voltage Relative to VSS: -0.3V
Voltage Relative to VDD: 0.3V
Storage Temperature: 0 to + 125
Operating Temperature: 0 to +70
Maximum Power Supply: 7V
Voltage Relative to VDD: 0.3V
Storage Temperature: 0 to + 125
Operating Temperature: 0 to +70
Maximum Power Supply: 7V
C9714 Features
· Supplies:
· 2 Ref clocks
2 Host (CPU) clocks
· 1 free running and 5 PCI Clocks
· 1 48MHz fixed clock
· 1 48 or 24 MHz fixed clock
· Separate supply pins for mixed (3.3/2.5V) voltage application.
· 100 or 66 MHz CPU clock operation
· Spread Spectrum modulation for reducing EMI
· Rich Power Management Functions.
· 28-pin SSOP & TSSOP packages for minimum board space.
· 2 Ref clocks
2 Host (CPU) clocks
· 1 free running and 5 PCI Clocks
· 1 48MHz fixed clock
· 1 48 or 24 MHz fixed clock
· Separate supply pins for mixed (3.3/2.5V) voltage application.
· 100 or 66 MHz CPU clock operation
· Spread Spectrum modulation for reducing EMI
· Rich Power Management Functions.
· 28-pin SSOP & TSSOP packages for minimum board space.

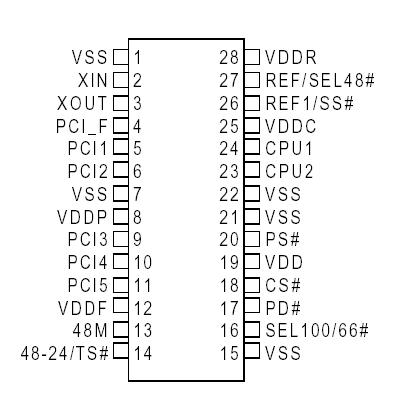

C9714 Connection Diagram
C9714
PDF/DataSheet Download
- Datasheet: C9714
- File Size: 110856 KB
- Manufacturer: ETC [ETC]
- Click here to Download
