General Description
CA16 General Description
The CA16-type transponder performs the parallel-toserial-to-optical transport and optical transport-toserial-to-parallel function of the section and photonic layers of the SONET/SDH protocol. The CA16 transmitter section performs the bit serialization and optical transmission of SONET/SDH OC-48/STM-16 data that has been formatted into standard SONET/SDH compliant 16-bit parallel format. The CA16 receiver performs the optical-to-electrical conversion function and is then able to detect frame and byte boundaries and demultiplex the serial data into 16-bit parallel OC-48/STM-16 format.
The CA16 transponder does not perform byte-level multiplexing or interleaving.
CA16 Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute
stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect reliability.
| Parameter | Symbol | Min | Max | Unit |
| Operating Case Temperature Range | TC | 0 | 75 | |
| Storage Case Temperature Range | TS | 40 | 85 | |
| Supply Voltage | - | 0.5 | 5.5 | V |
| Voltage on Any LVPECL Pin | - | 0 | VCC | - |
| High-speed LVPECL Output Source Current | - | - | 50 | mA |
| Static Discharge Voltage1 | ESD | - | 500 | V |
| Relative Humidity (noncondensing) | RH | - | 85 | % |
| Receiver Optical Input Power-Biased APD | PIN | - | 0dBm | |
| Minimum Fiber Bend Radius | - | 1.25 (31.8) | - | in. (mm) |
CA16 Features
`2.5 Gbits/s optical transmitter and receiver with 16-channel 155 Mbits/s multiplexer/demultiplexer.
` Available with 1.55 m cooled DFB laser transmitter and an APD receiver for long-reach applications:
- Offers 45 standard ITU wavelengths with 100 GHz spacing.
- Each module is capable of two wavelengths under user control.
`Pigtailed, low-profile package.
`Differential LVPECL data interface.
`Operating case temperature range: 0 to 65 .
`Automatic transmitter optical power control.
` Laser bias monitor output.
`Transmitter laser disable input.
`Line loopback and diagnostic loopback capability.
CA16 Typical Application
`Telecommunications:
- Inter- and intraoffice SONET/SDH
- Subscriber loop
- Metropolitan area networks
`High-speed data communications
- Inter- and intraoffice SONET/SDH
- Subscriber loop
- Metropolitan area networks
`High-speed data communications

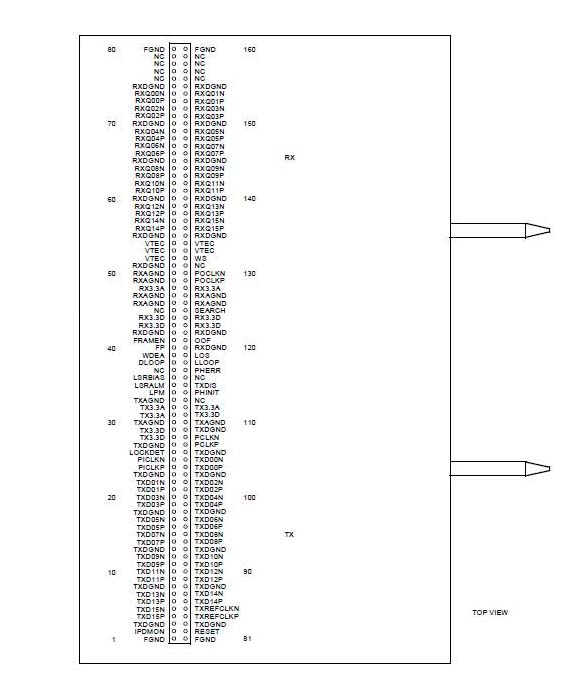

CA16 Connection Diagram
