Purchase CA258, In-stock CA258 From SeekIC.
MFG:HAR Package Cooled:CAN
- Table of contents:
CA258
-
Suppliers
DataSheet
General Description
CA258 Maximum Ratings
Supply Voltage
CA2904, LM2904 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26V or ±13V
Other Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V or ±16V
Differential Input Voltage (All Types) . . . . . . . . . . . . .. . . . . . . 32V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to V+
Input Current (VI < -0.3V, Note 1) . . . . . . . . . . . . . . . . . . . . 50mA
Output Short Circuit Duration (V+ 15V, Note 2) . . . .Continuous
CA2904, LM2904 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26V or ±13V
Other Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V or ±16V
Differential Input Voltage (All Types) . . . . . . . . . . . . .. . . . . . . 32V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to V+
Input Current (VI < -0.3V, Note 1) . . . . . . . . . . . . . . . . . . . . 50mA
Output Short Circuit Duration (V+ 15V, Note 2) . . . .Continuous
CA258 Features
• Internal Frequency Compensation for Unity Gain
• High DC Voltage Gain . . . . . . . . . . . . . . . . . . 100dB(Typ)
• Wide Bandwidth at Unity Gain . . . . . . . . . . . . .1MHz(Typ)
• Wide Power Supply Range:
- Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 30V
• Dual Supplies . . . . . . . . . . . . . . . . . . . . . . . ±1.5V to ±15V
• Low Supply Current . . . . . . . . . . . . . . . . . . . .1.5mA(Typ)
• Low Input Bias Current
• Low Input Offset Voltage and Current
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to V+ Range
• Large Output Voltage Swing. . . . . . . . . . . . 0V to V+ -1.5V
• High DC Voltage Gain . . . . . . . . . . . . . . . . . . 100dB(Typ)
• Wide Bandwidth at Unity Gain . . . . . . . . . . . . .1MHz(Typ)
• Wide Power Supply Range:
- Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 30V
• Dual Supplies . . . . . . . . . . . . . . . . . . . . . . . ±1.5V to ±15V
• Low Supply Current . . . . . . . . . . . . . . . . . . . .1.5mA(Typ)
• Low Input Bias Current
• Low Input Offset Voltage and Current
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to V+ Range
• Large Output Voltage Swing. . . . . . . . . . . . 0V to V+ -1.5V
CA258 Typical Application
The CA158, CA158A, CA258, CA358, CA358A and CA2904 types consist of two independent, high gain, internally frequency compensated operational amplifiers which are designed specifically to operate from a single power supply over a wide range of voltages. They may also be operated from split power supplies. The supply current is basically independent of the supply voltage over the recommended voltage range.
These devices are particularly useful in interface circuits with digital systems and can be operated from the single common 5VDC power supply. They are also intended for transducer amplifiers, DC gain blocks and many other conventional op amp circuits which can benefit from the single power supply capability.
The CA158, CA158A, CA258, CA358, CA358A, and CA2904 types are an equivalent to or a replacement for the industry types 158, 158A, 258, 258A, 358, 358A, and CA2904.
Technical Data on LM Branded types is identical to the corresponding CA Branded types.
CA258 Connection Diagram
CA258
PDF/DataSheet Download
- Datasheet: CA258
- File Size: 88051 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·CA201
- FUJI [Fuji Electric]
- FAST RECOVERY DIODE
- 9182 KB
- ·CA2033
- Sipex
- CA2033_Sipex.pdf
- 187011 KB
- ·CA20COM-E10SL-1PW-B-01
- ITT [ITT Industries]
- Industrial Connectors
- 1931106 KB
- ·CA20COM-F10SL-1PW-B-01
- ITT [ITT Industries]
- Industrial Connectors
- 1931106 KB
- ·CA20COM-L10SL-1PW-B-01
- ITT [ITT Industries]
- Industrial Connectors
- 1931106 KB
- ·CA20COM-PG10SL-1PW-B-01
- ITT [ITT Industries]
- Industrial Connectors
- 1931106 KB
- ·CA2111
- INTERSIL [Intersil Corporation]
- FM IF Amplifier-Limiter and Quadrature Detector
- 51820 KB
- ·CA2111A
- INTERSIL [Intersil Corporation]
- FM IF Amplifier-Limiter and Quadrature Detector
- 51820 KB
CA258 Relative Products

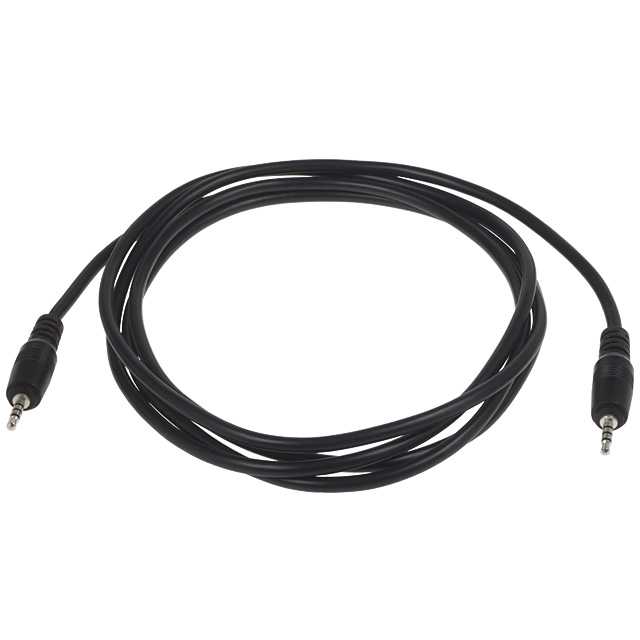

CA-254S-M/M
