CA3039

DIODE ARRAY- 6 MATCH. UF,LOW CAP

product image

CA3039 Picture
See larger image
SeekIC No. : 004310238 Detail

CA3039: DIODE ARRAY- 6 MATCH. UF,LOW CAP

CA3039 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CA3039
Mfg:
Intersil
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Six Matched Diodes on a Common Substrate
• Excellent Reverse Recovery Time . . . . . . . .  . . 1ns (Typ)
• VF Match . . . . . . . . . . . . . . . . . . . . . . . . . .  .. . 5mV (Max)
• Low Capacitance . . . . . . .  CD = 0.65pF (Typ) at VR = -2V


Application

• Ultra-Fast Low Capacitance Matched Diodes for Applications in Communications and Switching Systems
• Balanced Modulators or Demodulators
• Ring Modulators
• High Speed Diode Gates
• Analog Switches


Pinout

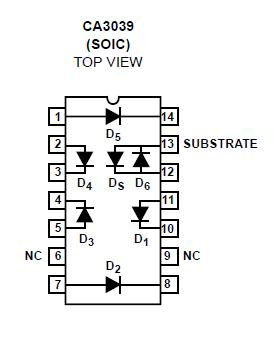

Connection Diagram


Specifications

Inverse Voltage (PIV) for: D1 - D5 . . . . . . . . . . . . . . . . . . . .  . . . 5V
D6 . . . . . . . . . . . . . . . . . . . . . . . 0.5V
Diode-to-Substrate Voltage (VDI) for D1 - D5 . . . . . . . . . . .20V, -1V
(Terminal 1, 4, 5, 8 or 12 to Terminal 10)
DC Forward Current (IF) . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .25mA
Recurrent Forward Current (IF) . . . . . . . . . . . . . . . . . . . . . . .100mA
Forward Surge Current (IF(SURGE)). . . . . . . . . . . . . . . . . . . .100mA


Description

The CA3039 consists of six ultra-fast, low capacitance diodes on a common monolithic substrate. Integrated circuit construction assures excellent static and dynamic matching of the diodes, making the array extremely useful for a wide variety of applications in communication and switching systems.

Five of the diodes CA3039are independently accessible, the sixth shares a common terminal with the substrate.

For CA3039 applications such as balanced modulators or ring modulators where capacitive balance is important, the substrate should be returned to a DC potential which is significantly more negative (with respect to the active diodes) than the peak signal applied.




Parameters:

Technical/Catalog InformationCA3039
VendorIntersil
CategoryUndefined Category
RoHS StatusRoHS Non-Compliant
Other Names CA3039
CA3039
