Product Details

Description



Features:

• Two Matched Transistors
- VBE Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5mV
- IIO Match. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A (Max)
• Low Noise Figure . . . . . . . . . . . . . . . . 3.2dB (Typ) at 1kHz
• 5 General Purpose Monolithic Transistors
• Operation From DC to 120MHz
• Wide Operating Current Range
• Full Military Temperature Range


Application

• Three Isolated Transistors and One Differentially Connected Transistor Pair for Low Power Applications at Frequencies from DC Through the VHF Range
• Custom Designed Differential Amplifiers
• Temperature Compensated Amplifiers
• See Application Note, AN5296 "Application of the CA3018 Integrated-Circuit Transistor Array" for Suggested
Applications

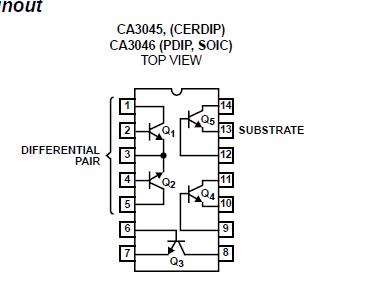

Pinout

Connection Diagram




Specifications

Collector-to-Emitter Voltage (VCEO) . . . . . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage (VCBO) . . . . . . . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage (VCIO, Note 1) . . . . . . . . . . . . . . 20V
Emitter-to-Base Voltage (VEBO) . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current (IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
