CA3054
-
Suppliers
DataSheet
General Description
CA3054 Maximum Ratings
Collector-to-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . . . . . . . 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
CA3054 Features
• Two Differential Amplifiers on a Common Substrate
• Independently Accessible Inputs and Outputs
• Maximum Input Offset Voltage . . . . . . . . . . . . . . . . . ±5mV
• Temperature Range . . . . . . . . . . . . . . . . . . . 0 to 85
• Independently Accessible Inputs and Outputs
• Maximum Input Offset Voltage . . . . . . . . . . . . . . . . . ±5mV
• Temperature Range . . . . . . . . . . . . . . . . . . . 0 to 85
CA3054 Typical Application
• Dual Sense Amplifiers
• Dual Schmitt Triggers
• Multifunction Combinations
- RF/Mixer/Oscillator; Converter/IF
• IF Amplifiers (Differential and/or Cascode)
• Product Detectors
• Doubly Balanced Modulators and Demodulators
• Balanced Quadrature Detectors
• Cascade Limiters
• Synchronous Detectors
• Pairs of Balanced Mixers
• Synthesizer Mixers
• Balanced (Push-Pull) Cascode Amplifiers
• Dual Schmitt Triggers
• Multifunction Combinations
- RF/Mixer/Oscillator; Converter/IF
• IF Amplifiers (Differential and/or Cascode)
• Product Detectors
• Doubly Balanced Modulators and Demodulators
• Balanced Quadrature Detectors
• Cascade Limiters
• Synchronous Detectors
• Pairs of Balanced Mixers
• Synthesizer Mixers
• Balanced (Push-Pull) Cascode Amplifiers

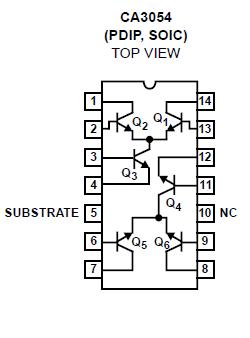

CA3054 Connection Diagram
