Purchase CA3083, In-stock CA3083 From SeekIC.
MFG:HARRIS Package Cooled:DIP
- Table of contents:
CA3083
-
Suppliers
DataSheet
General Description
CA3083 Maximum Ratings
The following ratings apply for each transistor in the device:
Collector-to-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . ... 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current (IC) . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Base Current (IB) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. 20mA
Collector-to-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . 15V
Collector-to-Base Voltage, VCBO. . . . . . . . . . . . . . . . . . ... 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current (IC) . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Base Current (IB) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. 20mA
CA3083 Features
• High IC . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . . 100mA (Max)
• Low VCE sat (at 50mA) . . . . . . . . . . . . .. . . ... . . . . . . 0.7V (Max)
• Matched Pair (Q1 and Q2)
- VIO (VBE Match) . . . . . . . . . . . . . . . . . . .. . . .. . . . . ±5mV (Max)
- IIO (at 1mA). . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . 2.5A (Max)
• 5 Independent Transistors Plus Separate Substrate Connection
• Low VCE sat (at 50mA) . . . . . . . . . . . . .. . . ... . . . . . . 0.7V (Max)
• Matched Pair (Q1 and Q2)
- VIO (VBE Match) . . . . . . . . . . . . . . . . . . .. . . .. . . . . ±5mV (Max)
- IIO (at 1mA). . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . 2.5A (Max)
• 5 Independent Transistors Plus Separate Substrate Connection
CA3083 Typical Application
• Signal Processing and Switching Systems Operating from DC to VHF
• Lamp and Relay Driver
• Differential Amplifier
• Temperature Compensated Amplifier
• Thyristor Firing
• See Application Note AN5296 "Applications of the CA3018 Circuit Transistor Array" for Suggested Applications
• Lamp and Relay Driver
• Differential Amplifier
• Temperature Compensated Amplifier
• Thyristor Firing
• See Application Note AN5296 "Applications of the CA3018 Circuit Transistor Array" for Suggested Applications

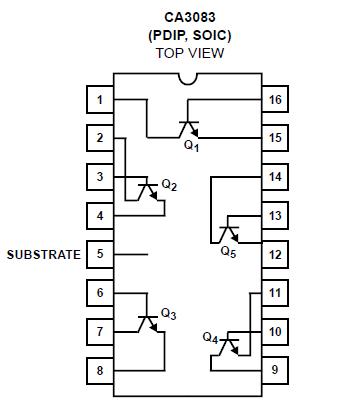

CA3083 Connection Diagram
CA3083
