Purchase CA3086, In-stock CA3086 From SeekIC.
MFG:HARRIS Package Cooled:DIP
Part Number: CA3086
MFG: HARRIS
Package Cooled: DIP
Description: The CA3086 consists of five general-purpose silicon NPN transistors on a common monolithic substrate. ...
- Table of contents:
CA3086
-
Suppliers
DataSheet
General Description
CA3086 General Description
The CA3086 consists of five general-purpose silicon NPN transistors on a common monolithic substrate. Two of the transistors are internally connected to form a differentially connected pair.
The transistors of the CA3086 are well suited to a wide variety of applications in low-power systems at frequencies from DC to 120MHz.
They may be used as discrete transistors in conventional circuits. However, they also provide the very significant inherent advantages unique to integrated circuits, such as compactness, ease of physical handling and thermal matching
CA3086 Maximum Ratings
The following ratings apply for each transistor in the device:
Collector-to-Emitter Voltage, VCEO. . . . . . . . . . . . . . . . .. 15V
Collector-to-Base Voltage, VCBO . . . . . . . . . . . . . . . . .. . 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO. . . . . . . . . . . . . . . . . . . . .. 5V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . .. ..50mA
Collector-to-Emitter Voltage, VCEO. . . . . . . . . . . . . . . . .. 15V
Collector-to-Base Voltage, VCBO . . . . . . . . . . . . . . . . .. . 20V
Collector-to-Substrate Voltage, VCIO (Note 1) . . . . . . . . 20V
Emitter-to-Base Voltage, VEBO. . . . . . . . . . . . . . . . . . . . .. 5V
Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . .. ..50mA
CA3086 Typical Application
• Three Isolated Transistors and One Differentially Connected Transistor Pair For Low-Power Applications from DC to 120MHz
• General-Purpose Use in Signal Processing Systems Operating in the DC to 190MHz Range
• Temperature Compensated Amplifiers
• See Application Note, AN5296 "Application of the CA3018 Integrated-Circuit Transistor Array" for Suggested Applications
• General-Purpose Use in Signal Processing Systems Operating in the DC to 190MHz Range
• Temperature Compensated Amplifiers
• See Application Note, AN5296 "Application of the CA3018 Integrated-Circuit Transistor Array" for Suggested Applications

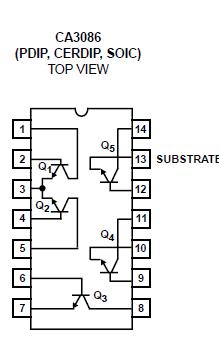

CA3086 Connection Diagram
CA3086
