CA3524 General Description
CA3524 Maximum Ratings
Input Voltage (Between VIN and GND Terminals). . . . . . . . . 40V
Operating Voltage Range (VIN to GND) . . . . . . . . . . . . .8 to 40V
Output Current Each Output:
(Terminal 11, 12 or 13, 14) . . . . . . . . . . . . . . . . . . . . .. . .100mA
Output Current (Reference Regulator) . . . . . . . . . . . .. . . .50mA
Oscillator Charging Current . . . . . . . . . . . . . . . . . . . . . . . .5mA
Thermal Resistance JA
Plastic DIP Package . . . . . . . . . . . . . . . . . . . . . . .. . . . . 100/W
Device Dissipation
Up to TA = +25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25W
Above TA = +25 . . . . . . . . . . . . . . .Derate Linearly at 10mW/
Operating Temperature Range . . . . . . . . . . . . .. -55oC to +125
Storage Temperature Range. . . . . . . . . . .. . . . . -65oC to +150
Lead Temperature (During Soldering)
At distance 1/16 ± in. (1.59mm ±0.79mm)
from case for 10s Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . +265
CA3524 Features
• Complete PWM Power Control Circuitry
• Separate Outputs for Single-Ended or Push-Pull Operation
• Line and Load Regulation. . . . . . . . . . . . . . . 0.2%(Typ)
• Internal Reference Supply with 1% (Max) Oscillator and Reference Voltage Variation Over Full Temperature Range
• Standby Current of Less Than 10mA
• Frequency of Operation Beyond 100kHz
• Variable-Output Dead Time of 0.5s to 5s
• Low VCE(sat) Over the Temperature Range
CA3524 Typical Application
• Positive and Negative Regulated Supplies
• Dual-Output Regulators
• Flyback Converters
• DC-DC Transformer-Coupled Regulating Converters
• Single-Ended DC-DC Converters
• Variable Power Supplies

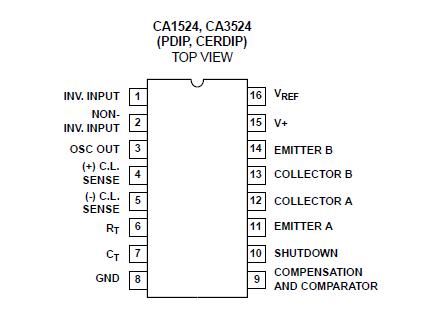

CA3524 Connection Diagram
