Purchase CA358, In-stock CA358 From SeekIC.
MFG:HAR Package Cooled:CAN
- Table of contents:
CA358
-
Suppliers
DataSheet
General Description
CA358 Maximum Ratings
Supply Voltage
CA2904, LM2904 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26V or ±13V
Other Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V or ±16V
Differential Input Voltage (All Types) . . . . . . . . . . . . .. . . . . . . 32V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to V+
Input Current (VI < -0.3V, Note 1) . . . . . . . . . . . . . . . . . . . . 50mA
Output Short Circuit Duration (V+ 15V, Note 2) . . . .Continuous
CA2904, LM2904 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26V or ±13V
Other Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32V or ±16V
Differential Input Voltage (All Types) . . . . . . . . . . . . .. . . . . . . 32V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to V+
Input Current (VI < -0.3V, Note 1) . . . . . . . . . . . . . . . . . . . . 50mA
Output Short Circuit Duration (V+ 15V, Note 2) . . . .Continuous
CA358 Features
• Internal Frequency Compensation for Unity Gain
• High DC Voltage Gain . . . . . . . . . . . . . . . . . . 100dB(Typ)
• Wide Bandwidth at Unity Gain . . . . . . . . . . . . .1MHz(Typ)
• Wide Power Supply Range:
- Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 30V
• Dual Supplies . . . . . . . . . . . . . . . . . . . . . . . ±1.5V to ±15V
• Low Supply Current . . . . . . . . . . . . . . . . . . . .1.5mA(Typ)
• Low Input Bias Current
• Low Input Offset Voltage and Current
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to V+ Range
• Large Output Voltage Swing. . . . . . . . . . . . 0V to V+ -1.5V
• High DC Voltage Gain . . . . . . . . . . . . . . . . . . 100dB(Typ)
• Wide Bandwidth at Unity Gain . . . . . . . . . . . . .1MHz(Typ)
• Wide Power Supply Range:
- Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 30V
• Dual Supplies . . . . . . . . . . . . . . . . . . . . . . . ±1.5V to ±15V
• Low Supply Current . . . . . . . . . . . . . . . . . . . .1.5mA(Typ)
• Low Input Bias Current
• Low Input Offset Voltage and Current
• Input Common-Mode Voltage Range Includes Ground
• Differential Input Voltage Range Equal to V+ Range
• Large Output Voltage Swing. . . . . . . . . . . . 0V to V+ -1.5V
CA358 Typical Application
The CA158, CA158A, CA258, CA358, CA358A and CA2904 types consist of two independent, high gain, internally frequency compensated operational amplifiers which are designed specifically to operate from a single power supply over a wide range of voltages. They may also be operated from split power supplies. The supply current is basically independent of the supply voltage over the recommended voltage range.
These devices are particularly useful in interface circuits with digital systems and can be operated from the single common 5VDC power supply. They are also intended for transducer amplifiers, DC gain blocks and many other conventional op amp circuits which can benefit from the single power supply capability.
The CA158, CA158A, CA258, CA358, CA358A, and CA2904 types are an equivalent to or a replacement for the industry types 158, 158A, 258, 258A, 358, 358A, and CA2904.
Technical Data on LM Branded types is identical to the corresponding CA Branded types.
CA358 Connection Diagram
CA358
PDF/DataSheet Download
- Datasheet: CA358
- File Size: 88051 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·CA3001/3
- Amplifier. Other
- 56204 KB
- ·CA3001T
- Analog IC
- 133541 KB
- ·CA3002
- HARRIS [Harris Corporation]
- DIFFERENTIAL AMPLIFIERS
- 305357 KB
- ·CA3005
- Amplifier. Other
- 56204 KB
- ·CA3018
- GESS [GE Solid State]
- GENERAL PURPOSE TRANSISTOR ARRAYS
- 281263 KB
- ·CA3018A
- GESS [GE Solid State]
- GENERAL PURPOSE TRANSISTOR ARRAYS
- 281263 KB
- ·CA3019
- INTERSIL [Intersil Corporation]
- ULTRA-FAST LOW-CAPACLTANCE MATCHED DIODES
- 89781 KB
- ·CA301AE
- Operational Amplifier
- 56204 KB
CA358 Relative Products

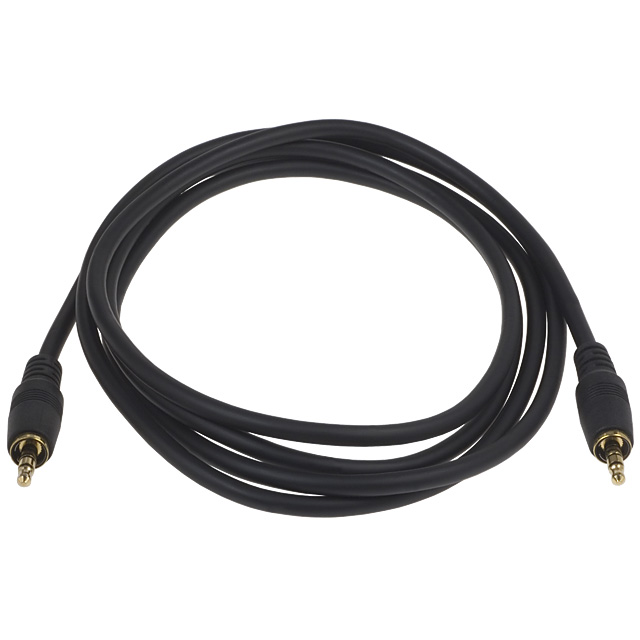

CA-356CS-M/M
