Description: The CAT93C56/57 are 2K-bit Serial EEPROM memory devices which are configured as either registers of 16...
- Table of contents:
CAT93C56
-
Suppliers
DataSheet
General Description
CAT93C56 General Description
The CAT93C56/57 are 2K-bit Serial EEPROM memory devices which are configured as either registers of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C56/57 are manufactured using Catalyst's advanced CMOS EEPROM floating gate technology. The devices are designed to endure 1,000,000 program/erase cycles and has a data reten- tion of 100 years. The devices are available in 8-pin DIP, 8-pin SOIC, 8-pin TSSOP and 8-pad TDFN packages.
CAT93C56 Maximum Ratings
Temperature Under Bias ................-55°C to +125°C
Storage Temperature......................-65°C to +150°C
Voltage on any Pin with
Respect to Ground(1) ..................-2.0V to +VCC +2.0V
VCC with Respect to Ground ................-2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C)........................................1.0W
Lead Soldering Temperature (10 secs)............ 300°C
Output Short Circuit Current(2) .......................100 mA
Storage Temperature......................-65°C to +150°C
Voltage on any Pin with
Respect to Ground(1) ..................-2.0V to +VCC +2.0V
VCC with Respect to Ground ................-2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C)........................................1.0W
Lead Soldering Temperature (10 secs)............ 300°C
Output Short Circuit Current(2) .......................100 mA
CAT93C56 Features
. High speed operation: 1MHz
. Low power CMOS technology
. 1.8 to 6.0 volt operation
. Selectable x8 or x16 memory organization
. Self-timed write cycle with auto-clear
. Hardware and software write protection
. Power-up inadvertant write protection
. 1,000,000 Program/erase cycles
. 100 year data retention
. Commercial, industrial and automotive temperature ranges
. Sequential read
."Green" package option available

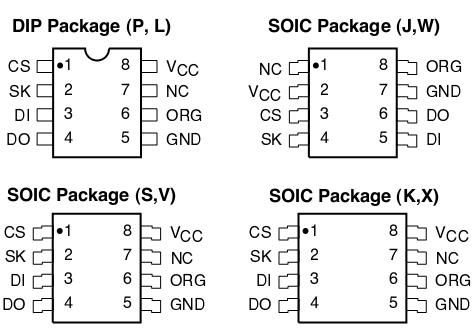

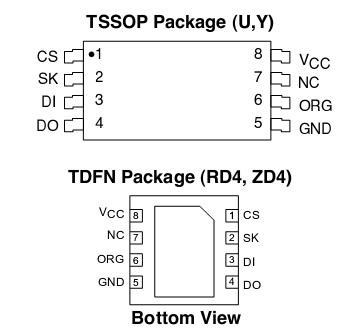

CAT93C56 Connection Diagram
CAT93C5631
