CC400 is a single-chip high performance, half-duplex, FSK, UHF transceiver designed for low power and low-voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) frequency bands at 315, 418 and 433 MHz, but can easily be programmed for operation at other frequency bands in the 300 - 500 MHz range.
The main operating parameters of CC400 can be programmed via a serial interface, thus making CC400 a very flexible and easy to use component. In a typical system CC400 will be used together with a microcontroller and a few external passive components.
CC400 Maximum Ratings
| Parameter |
Min. |
Max. |
Units |
Condition |
| Supply voltage, VDD |
-0.3 |
7.0 |
V |
|
| Voltage on any pin |
-0.3 |
VDD+0.3, max 7.0 |
V |
|
| Input RF level |
10 |
dBm |
||
| Storage temperature range |
-50 |
150 |
||
| Operating ambient temperature range |
-30 |
85 |
||
| Lead temperature |
260 |
T = 10 s |
CC400 Features
• Single chip RF transceiver
• Frequency range 300 500 MHz
• High sensitivity (typical -112 dBm)
• Programmable output power up to 25 mW (14 dBm)
• Small size (SSOP-28 package)
• Low supply voltage (2.7 V to 3.3 V)
• Very few external components required
• FSK modulation
• Very low phase noise
• Data-rate up to 9.6 kbit/s
• Suitable for both narrow and wide band systems
• Suitable for frequency hopping protocols
• Frequency-Lock indicator
• Development kit available
• Easy-to-use software (SmartRF Studio) for generating the CC400 configuration data
• Frequency range 300 500 MHz
• High sensitivity (typical -112 dBm)
• Programmable output power up to 25 mW (14 dBm)
• Small size (SSOP-28 package)
• Low supply voltage (2.7 V to 3.3 V)
• Very few external components required
• FSK modulation
• Very low phase noise
• Data-rate up to 9.6 kbit/s
• Suitable for both narrow and wide band systems
• Suitable for frequency hopping protocols
• Frequency-Lock indicator
• Development kit available
• Easy-to-use software (SmartRF Studio) for generating the CC400 configuration data
CC400 Typical Application
• UHF wireless data transmitters and receivers
• Wireless alarm and security systems
• 315 / 426 / 429 / 433 MHz ISM/SRD band systems
• Point of sale terminals
• Remote control systems
• Home security and automation
• Low power telemetry
• AMR Automatic Meter Reading
• Environmental control
• Wireless alarm and security systems
• 315 / 426 / 429 / 433 MHz ISM/SRD band systems
• Point of sale terminals
• Remote control systems
• Home security and automation
• Low power telemetry
• AMR Automatic Meter Reading
• Environmental control

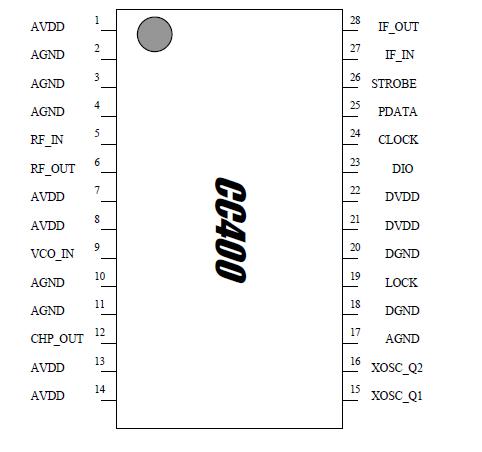

CC400 Connection Diagram
CC400
PDF/DataSheet Download
