Product Details

Description



Features:

• 96 Analog Switches
• Low RON
• Guaranteed RON Matching
• Analog Signal Input Voltage Equal to the Supply Voltage
• Wide Operating Voltage . . . . . . . . . . . . . . . . . . . 4V to 16V
• Parallel Input Addressing
• High Latch Up Current . . . . . . . . . . . . . . . . . . . .. 50mA (Min)
• Very Low Crosstalk
• Pin and Functionally Compatible with the Following Types: SGS M3493, SGS M093, SSI 78A093A, and Mitel
MT8812



Application

• PBX Systems
• Instrumentation
• Analog and Digital Multiplexers
• Video Switching Networks

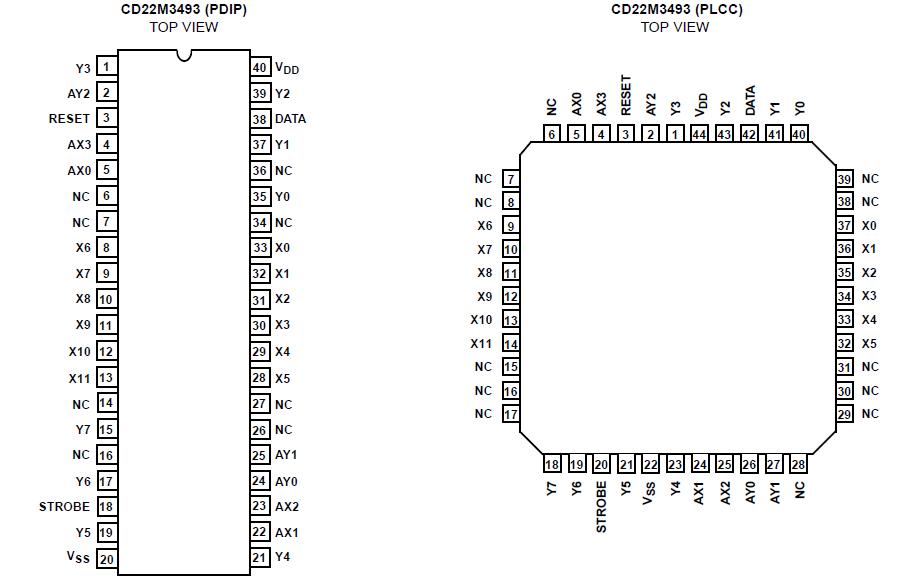

Pinout

  Connection Diagram


Specifications

DC Supply Voltage (VDD) (Referenced to VSS . . . . . .. -0.5V to 17V
Supply Voltage Range
For TA = Full Package Temperature Range
VSS = 0V, VDD 4V to 16V
DC Input Diode Current, IIN
For VI < VSS -0.5V or VI > VDD +0.5V . . . . . . . . . . . . . . .  . .. ±20mA
DC Output Diode Current, IOK
For VO < VSS -0.5V or VO > VDD +0.5V . . . . . . . . . . . . . . .  .  ±20mA
DC Transmission Gate Current . . . . . . . . . . . . . . . . . . . . . . .  ±25mA
Power Dissipation Per Package (Po)
For TA = -40 to 85 (PDIP) . . . . . . . . . . . . . . . . . . . . . . .  . .500mW
For TA = -40 to 85 (PLCC). . . . . . . . . . . . . . . . . . . .  . . . . ..600mW
