CD4013BCM

Mounting Style : SMD/SMT
Number of Circuits : 2
Input Type : Single-Ended
Maximum Operating Temperature : + 85 C
Packaging : Tube
Logic Type : D-Type Flip-Flop
Polarity : Inverting/Non-Inverting
Output Type : Differential
Package / Case : SOIC-14
High Level Output Current : - 4.2 mA
Low Level Output Current : 4.2 mA
Supply Voltage - Max : 15 V
Propagation Delay Time : 350 ns
Logic Family : CD401


Features:

·  Wide supply voltage range: 3.0V to 15V
·  High noise immunity: 0.45 VDD (typ.)
·  Low power TTL: fan out of 2 driving 74L
   compatibility: or 1 driving 74


Application

• Automotive
• Data terminals
• Instrumentation
• Medical electronics
• Alarm system
• Industrial electronics
• Remote metering
• Computers

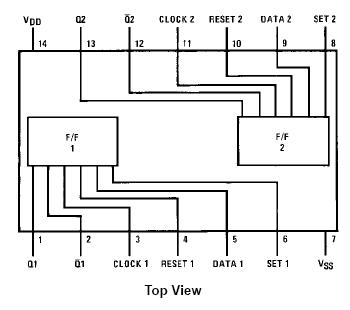

Pinout




Specifications

DC Supply Voltage (V_DD) ..............−0.5 VDC to +18 V_DC
Input Voltage (V_IN) ..............−0.5 VDC to VDD +0.5 V_DC
Storage Temperature Range (T_S) ,......−65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ......................................................700 mW
Small Outline .....................................................500 mW
Lead Temperature (T_L)
(Soldering, 10 seconds) ........................................260°C


Description

The CD4013B dual D-type flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors. Each flip-flop has independent data, set, reset, and clock inputs and "Q" and "Q" outputs. CD4013BCM can be used for shift register applications, and by connecting "Q" output to the data input, for counter and toggle applications. CD4013BCM logic level present at the "D" input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line respectively.

Parameters:

Technical/Catalog Information	CD4013BCM
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	14-SOIC
Function	Set and Reset
Number of Bits per Element	1
Number of Elements	2 - Dual
Current - Output High, Low	8.8mA, 8.8mA
Output Type	Differential
Trigger Type	Positive Edge
Type	D-Type
Packaging	Tube
Operating Temperature	-55°C ~ 125°C
Delay Time - Propagation	65ns
Frequency - Clock	12.5MHz
Voltage - Supply	3 V ~ 15 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD4013BCM CD4013BCM
