CD4015BCN

Counter Shift Registers Dl 4-Bit Shift Reg

product image

CD4015BCN Picture
SeekIC No. : 00421848 Detail

CD4015BCN: Counter Shift Registers Dl 4-Bit Shift Reg

floor Price/Ceiling Price

Part Number:
CD4015BCN
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Counting Sequence : Serial to Parallel Number of Circuits : 2
Package / Case : PDIP W Logic Family : CD4000
Logic Type : CMOS Number of Input Lines : 1
Propagation Delay Time : 350 ns, 160 ns, 120 ns Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C Packaging : Rail

Description

Counter Type :
Output Type :
Counting Sequence : Serial to Parallel
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Logic Type : CMOS
Number of Input Lines : 1
Number of Circuits : 2
Logic Family : CD4000
Packaging : Rail
Package / Case : PDIP W
Propagation Delay Time : 350 ns, 160 ns, 120 ns


Features:

·  Wide supply voltage range: 3.0V to 18V
·  High noise immunity: 0.45 VDD (typ.)
·  Low power TTL: Fan out of 2 driving 74L
   compatibility: or 1 driving 74LS
·  Medium speed operation: 8 MHz (typ.) clock rate
·  Fully static design: @VDD − VSS = 10V



Application

• Serial-input/parallel-output data queueing
• Serial to parallel data conversion
• General purpose register



Pinout

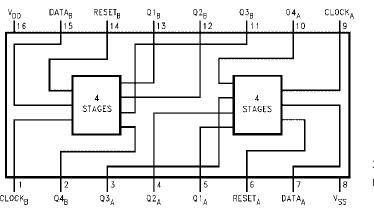

  Connection Diagram


Specifications

DC Supply Voltage (VDD).................... −0.5 to +18 VDC
Input Voltage (VIN) ....................−0.5 to VDD +0.5 VDC
Storage Temperature Range (TS) .....−65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ....................................................700 mW
Small Outline................................................... 500 mW
Lead Temperature (TL)
(Soldering, 10 seconds) ,....................................260°C



Description

The CD4015BC contains two identical, 4-stage, serialinput/ parallel-output registers with independent "Data", "Clock," and "Reset" inputs. The logic level present at the input of each stage is transferred to the output of that stage at each positive-going clock transition. A logic high on the "Reset" input resets all four stages covered by that input. All inputs are protected from static discharge by a series resistor and diode clamps to VDD and VSS.
