CD4016BCM

Number of Switches :
Switch Voltage (Max) :
Switch Configuration : SPST
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Off Time (Max) : 40 ns
On Time (Max) : 50 ns
Package / Case : SOIC-14
On Resistance (Max) : 400 Ohms
Operating Supply Voltage : 5 V, 9 V, 12 V


Features:

` Wide supply voltage range: 3V to 15V
` Wide range of digital and analog switching: ±7.5 VPEAK
` "ON" Resistance for 15V operation: 400 (typ)
` Matched "ON" Resistance over 15V signal input:
  RON = 10 (typ)
` High degree of linearity:
  0.4% distortion (typ)
  @ fIS = 1 kHz, VIS = 5 Vp-p,
  VDD−VSS = 10V, RL = 10 k
` Extremely low "OFF" switch leakage:
  0.1 nA (typ.)
  @ VDD − VSS = 10V
  TA = 25°C

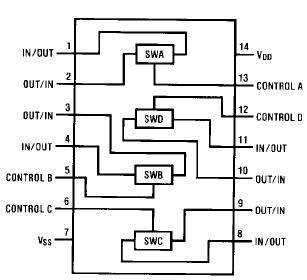

Pinout




Specifications

VDD Supply Voltage............................. −0.5V to +18V
VIN Input Voltage ......................−0.5V to VDD + 0.5V
TS Storage Temperature Range ....−65°C to + 150°C
Power Dissipation (PD)
Dual-In-Line ..................................................700 mW
Small Outline ................................................500 mW
Lead Temperature
(Soldering, 10 seconds) ..................................260°C


Description

The CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BC


Parameters:

Technical/Catalog Information	CD4016BCM
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Circuit	1 x 1:1
Independent Circuits	4
Mounting Type	Surface Mount
Current - Output High, Low	-
Package / Case	14-SOIC
Packaging	Tube
Type	Bilateral, FET Switches
Voltage Supply Source	Dual Supply
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	3 V ~ 15 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CD4016BCM CD4016BCM
