CD40257BMS

Features: • High Voltage Type (20V Rating)• 3-State Outputs• 100% Tested for Quiescent Current at 20V• 5V, 10V and 15V Parametric Ratings• Maximum Input Current of 1A at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC• Noise Margin (Over Full Pac...

product image

CD40257BMS Picture
See larger image
SeekIC No. : 004311241 Detail

CD40257BMS: Features: • High Voltage Type (20V Rating)• 3-State Outputs• 100% Tested for Quiescent Current at 20V• 5V, 10V and 15V Parametric Ratings• Maximum Input Current of 1A a...

CD40257BMS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD40257BMS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Voltage Type (20V Rating)
• 3-State Outputs
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1A at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
        1V at VDD = 5V
        2V at VDD = 10V
        2.5V at VDD = 15V
• Standardized Symmetrical Output Characteristics
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"




Application

• Digital Multiplexing
• Shift Right/Shift Left Registers
• True/Complement Selection


Pinout

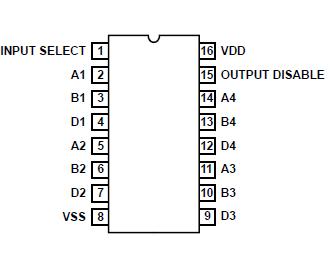

Connection Diagram


Specifications

DC Supply Voltage Range, (VDD)..0.5V to +20V (Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs .....................................................-0.5V to VDD +0.5V
DC Input Current, Any One Input.......................................................................±10mA
Operating Temperature Range ................. -55 to +125 Package Types D, F, K, H
Storage Temperature Range (TSTG).................................................. -65 to +150
Lead Temperature (During Soldering) ............................................................. +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD40257BMS is a data selector/multiplexer featuring three state outputs which can interface directly with and drive data lines of bus oriented systems.

The CD40257BMS is supplied in these 16-lead outline packages:
     Braze Seal DIP            H4T
     Frit Seal DIP                H1E
     Ceramic Flatpack         H3X
