CD4029BMS

Features:

• High-Voltage Type (20V Rating)
• Medium Speed Operation: 8MHz (Typ.) at CL = 50pF and VDD - VSS = 10V
• Multi-Package Parallel Clocking for Synchronous High Speed Output Response or Ripple Clocking for Slow Clock Input Rise and Fall Times
• "Preset Enable" and Individual "Jam" Inputs Provided
• Binary or Decade Up/Down Counting
• BCD Outputs in Decade Mode
• 100% Tested for Maximum Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Standardized Symmetrical Output Characteristics
• Maximum Input Current of 1A at 18V Over Full Package- Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package Temperature Range):
1V at VDD = 5V
2V at VDD = 10V
2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standards No. 13B, "Standard Specifications for Description of "B" Series CMOS Device's

Application

• Programmable Binary and Decade Counting/Frequency Synthesizers-BCD Output
• Analog to Digital and Digital to Analog Conversion
• Up/Down Binary Counting
• Difference Counting
• Magnitude and Sign Generation
• Up/Down Decade Counting

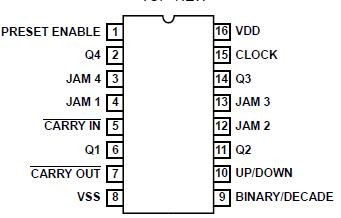

Pinout






Specifications

DC Supply Voltage Range, (VDD)..0.5V to +20V (Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs .....................................................-0.5V to VDD +0.5V
DC Input Current, Any One Input.......................................................................±10mA
Operating Temperature Range ................. -55 to +125 Package Types D, F, K, H
Storage Temperature Range (TSTG).................................................. -65 to +150
Lead Temperature (During Soldering) ............................................................. +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum




Description

CD4029BMS consists of a four-stage binary or BCD-decade up/ down counter with provisions for look-ahead carry in both counting modes. The CD4029BMS inputs consist of a single CLOCK, CARRY-IN (CLOCK ENABLE), BINARY/DECADE, UP/DOWN, PRESET ENABLE, and four individual JAM signals. Q1, Q2, Q3, Q4 and a CARRY-OUT OUT signal are provided as outputs. A high PRESET ENABLE signal allows information on the JAM INPUTS to preset the counter to any state asynchronously with the clock. A low on each JAM line, when the PRESET-ENABLE signal is high, resets the counter to its zero count. The CD4029BMS counter is advanced one count at the positive transition of the clock when the CARRY-IN-IN and PRE-SET ENABLE signals are low. Advancement is inhibited when the CARRY-IN or PRESET ENABLE signals are high. The CARRY-OUT signal is normally high and goes low when the counter reaches its maximum count in the UP mode or the minimum count in the DOWN mode provided the CARRY-IN signal is low. The CARRY-IN signal in the low state can thus be considered a CLOCK ENABLE. The CARRY-IN terminal must be connected to VSS when not in use. Binary counting is accomplished when the BINARY/DECADE input is high; the CD4029BMS counter counts in the decade mode when the BINARY/DECADE input is low. The CD4029BMS counter counts up when the UP/DOWN input is high, and down when the UP/DOWN input is low. Multiple packages can be connected in either a parallelclocking or a ripple-clocking arrangement as shown in Figure 17. Parallel clocking provides synchronous control and hence faster response from all counting outputs. Ripple-clocking allows for longer clock input rise and fall times. The CD4029BMS is supplied in these 16-lead outline packages: Braze Seal DIP H4X Frit Seal DIP H1F Ceramic Flatpack H6W
