CD4049UBCSJX Selling Leads, Price trend, CD4049UBCSJX DataSheet download, circuit diagram from SeekIC.com

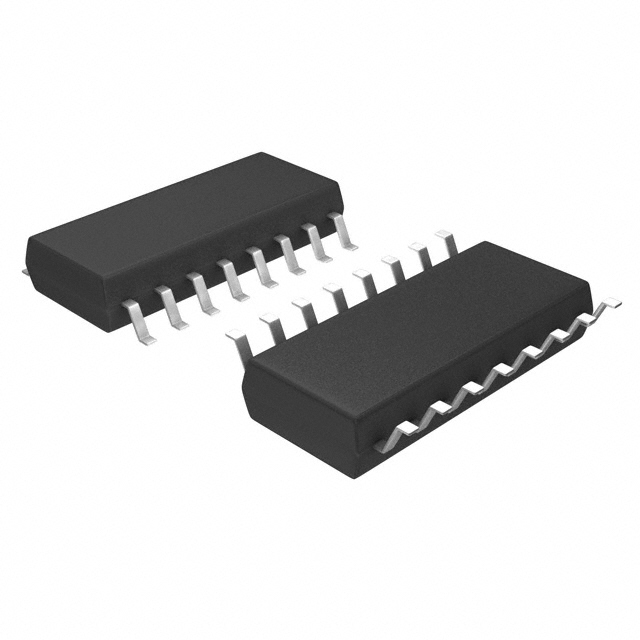

See larger image

SeekIC No. : 003544028 Detail

CD4049UBCSJX: IC INVERTER HEX 1INPUT 16SOP

CD4049UBCSJX Data Sheet

Get Latest Price

Part Number:: CD4049UBCSJX
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CD4000B evaluate
Features: SpecificationsDescriptionThe CD4000B has the following features including DC INPUT CURRE...
CD4000BMS evaluate
Features: • High-Voltage Types (20V Rating)• Propagation Delay Time = 60ns (typ.) at C...
CD4001BC evaluate
Features: ` Low power TTL.... Fan out of 2 driving 74L compatibility.......... or 1 driving 74LS`5...

Product Details

Quick Details

Series:	4000B	Manufacturer:	Fairchild Semiconductor
Logic Type:	Inverter, Buffer	Number of Circuits:	6
Number of Inputs:	1	Features:	-
Voltage - Supply:	3 V ~ 15 V	Supply Voltage - Max :	1.9 V
Current - Quiescent (Max):	4µA	Current - Output High, Low:	7.2mA, 29mA
Logic Level - Low:	1 V ~ 3 V	Logic Level - High:	4 V ~ 12 V
Max Propagation Delay @ V, Max CL:	35ns @ 15V, 50pF	Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount	Supplier Device Package:	16-SOIC
Package / Case:	16-SOIC (0.209", 5.30mm Width)

Description

Logic Type: Inverter, Buffer
Number of Inputs: 1
Mounting Type: Surface Mount
Features: -
Number of Circuits: 6
Operating Temperature: -55°C ~ 125°C
Series: 4000B
Current - Quiescent (Max): 4µA
Package / Case: 16-SOIC (0.209", 5.30mm Width)
Packaging: Tube
Supplier Device Package: 16-SOIC
Voltage - Supply: 3 V ~ 15 V
Max Propagation Delay @ V, Max CL: 35ns @ 15V, 50pF
Manufacturer: Fairchild Semiconductor
Logic Level - Low: 1 V ~ 3 V
Logic Level - High: 4 V ~ 12 V
Current - Output High, Low: 7.2mA, 29mA

Parameters:

Technical/Catalog Information	CD4049UBCSJX
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	16-SOP
Logic Type	Inverter
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	12mA, 40mA
Supply Voltage	3 V ~ 15 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	3 V ~ 15 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD4049UBCSJX CD4049UBCSJX
