CD4070BCN

IC GATE OR QUAD EXCLUS 14-DIP

product image

CD4070BCN Picture
SeekIC No. : 003543597 Detail

CD4070BCN: IC GATE OR QUAD EXCLUS 14-DIP

floor Price/Ceiling Price

Part Number:
CD4070BCN
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: 4000B Manufacturer: Fairchild Semiconductor
Logic Type: XOR (Exclusive OR) Number of Circuits: 4
Number of Inputs: 2 Features: -
Voltage - Supply: 3 V ~ 15 V Supply Voltage - Max : 1.9 V
Current - Quiescent (Max): 1µA Current - Output High, Low: 3.4mA, 3.4mA
Logic Level - Low: 1.5 V ~ 4 V Logic Level - High: 3.5 V ~ 11 V
Max Propagation Delay @ V, Max CL: 75ns @ 15V, 50pF Operating Temperature: -55°C ~ 125°C
Mounting Type: Through Hole Supplier Device Package: 14-DIP
Package / Case: 14-DIP (0.300", 7.62mm)

Description

Number of Inputs: 2
Features: -
Current - Quiescent (Max): 1µA
Logic Type: XOR (Exclusive OR)
Operating Temperature: -55°C ~ 125°C
Number of Circuits: 4
Series: 4000B
Current - Output High, Low: 3.4mA, 3.4mA
Logic Level - Low: 1.5 V ~ 4 V
Logic Level - High: 3.5 V ~ 11 V
Mounting Type: Through Hole
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Voltage - Supply: 3 V ~ 15 V
Supplier Device Package: 14-DIP
Manufacturer: Fairchild Semiconductor
Max Propagation Delay @ V, Max CL: 75ns @ 15V, 50pF


Features:

· Wide supply voltage range: 3.0V to 15V
· High noise immunity: 0.45 VDD typ.
· Low power TTL compatibility:
   Fan out of 2 driving 74L or 1 driving 74LS
· Pin compatible to CD4030A
   Equivalent to MM74C86 and MC14070B



Pinout

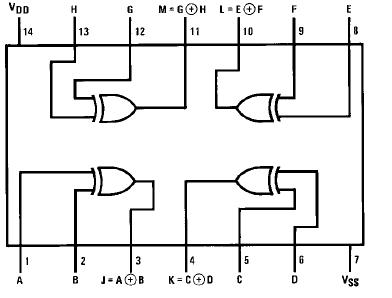

  Connection Diagram


Specifications

DC Supply Voltage (VDD) ...................−0.5 to +18 VDC
Input Voltage (VIN) ..................−0.5 to VDD +0.5 VDC
Storage Temperature Range (TS)... −65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ..................................................700 mW
Small Outline .................................................500 mW
Lead Temperature (TL)
(Soldering, 10 seconds) ...................................260°C



Description

The CD4070BC employs complementary MOS (CMOS) transistors to achieve wide power supply operating range, low power consumption, and high noise margin, the CD4070BC provide basic functions used in the implementation of digital integrated circuit systems. The N- and Pchannel enhancement mode transistors provide a symmetrical circuit with output swing essentially equal to the supply voltage. No DC power other than that caused by leakage current is consumed during static condition. All CD4070BC inputs are protected from damage due to static discharge by diode clamps to VDD and VSS.




Parameters:

Technical/Catalog InformationCD4070BCN
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-DIP
Logic TypeXOR (Exclusive OR)
PackagingTube
Mounting TypeThrough Hole
Number of Inputs2
Current - Output High, Low8.8mA, 8.8mA
Supply Voltage3 V ~ 15 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply3 V ~ 15 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CD4070BCN
CD4070BCN
