CD74FCT863A Maximum Ratings
DC Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . .-0.5V to 6V
DC Diode Current, IIK (For VI < -0.5V) . . . . . . . . . . . . . . . . -20mA
DC Output Diode Current, IOK (for VO < -0.5V) . . . . . . . . . .-50mA
DC Output Sink Current per Output Pin, IO . . . . . . . . . . . . . .70mA
DC Output Source Current per Output Pin, IO . . . . . . . . . . . -30mA
DC VCC Current (ICC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234mA
DC Ground Current (IGND). . . . . . . . . . . . . . . . . . . . . . . . . . .455mA
CD74FCT863A Features
• Buffered Inputs
• Typical Propagation Delay: 6.0ns at VCC = 5V, TA = 25, CL = 50pF
• CD74FCT863A
- Noninverting
• SCR Latchup Resistant BiCMOS Process and Circuit Design
• Speed of Bipolar FAST™/AS/S
• 48mA Output Sink Current
• Output Voltage Swing Limited to 3.7V at VCC = 5V
• Controlled Output Edge Rates
• Input/Output Isolation to VCC
• BiCMOS Technology with Low Quiescent Pow

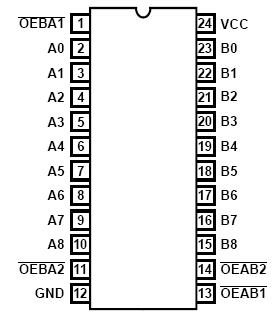

CD74FCT863A Connection Diagram
