CGY2030M

Features: ` Power Amplifier (PA) overall efficiency 40%` 27 dB gain` 0 dBm input power` Operation possible without negative supply` Wide operating temperature range -30 to +85 ` SSOP16 package.Application1.88 to 1.9 GHz transceivers for DECT applications2 GHz transceivers (PHS, DCS).PinoutSpecific...

product image

CGY2030M Picture
See larger image
SeekIC No. : 004313288 Detail

CGY2030M: Features: ` Power Amplifier (PA) overall efficiency 40%` 27 dB gain` 0 dBm input power` Operation possible without negative supply` Wide operating temperature range -30 to +85 ` SSOP16 package.Appli...

CGY2030M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CGY2030M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Power Amplifier (PA) overall efficiency 40%
` 27 dB gain
` 0 dBm input power
` Operation possible without negative supply
` Wide operating temperature range -30 to +85
` SSOP16 package.


Application

1.88 to 1.9 GHz transceivers for DECT applications
2 GHz transceivers (PHS, DCS).


Pinout

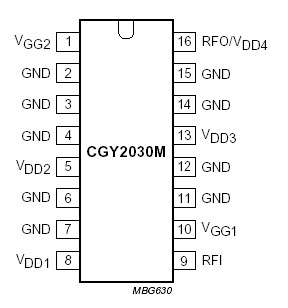

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
VDD operating supply voltage   - - 5.2 V
VDD - VGG voltage difference between supply voltage
and gate bias voltage		 no input signal - - 8 V
Tj(max) maximum operating junction temperature   - - 150
Ptot total power dissipation   - - 400 mW
Tstg IC storage temperature   -55 - +125



Description

The CGY2030M is a GaAs Monolithic Microwave Integrated Circuit (MMIC) power amplifier specifically designed to operate at 3.6 V battery supply. When power control is not required, it can be operated without negative supply voltage.
