CGY2032TS

Features: `Power Amplifier (PA) overall efficiency 55%`27.5 dBm saturated output power at 3.2 V`0 dBm input power`40 dB linear gain`Operation without negative supply`Wide operating temperature range -30 to +85`SSOP16 package.Application·1.88 to 1.9 GHz transceivers for DECT applications·2 GHz tran...

product image

CGY2032TS Picture
See larger image
SeekIC No. : 004313290 Detail

CGY2032TS: Features: `Power Amplifier (PA) overall efficiency 55%`27.5 dBm saturated output power at 3.2 V`0 dBm input power`40 dB linear gain`Operation without negative supply`Wide operating temperature range...

CGY2032TS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CGY2032TS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Power Amplifier (PA) overall efficiency 55%
`27.5 dBm saturated output power at 3.2 V
`0 dBm input power
`40 dB linear gain
`Operation without negative supply
`Wide operating temperature range -30 to +85
`SSOP16 package.


Application

·1.88 to 1.9 GHz transceivers for DECT applications
·2 GHz transceivers [Personal Handy phone System (PHS), Digital Cellular System (DCS) and Personal Communication Services (PCS)].

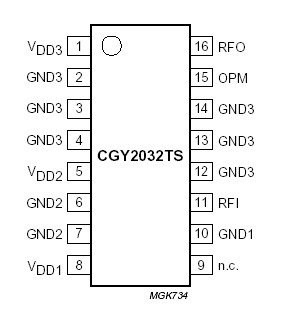

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD operating supply voltage note 1 - 5.2 V
Tj(max) maximum operating junction temperature   - 150
Ptot total power dissipation note 2 - 450 mW
Pi input power   - 15 dBm
Tstg storage temperature   -55 +125



Description

The CGY2032TS is a GaAs Monolithic Microwave Integrated Circuit (MMIC) power amplifier specifically designed to operate from 3.6 V battery supply.
No negative supply voltage is required for operation.
