Part Number: CH7301A
Description: The CH7301 is a Display controller device which accepts a digital graphics input signal, and encodes and transmits data...
- Table of contents:
CH7301A
-
Suppliers
DataSheet
General Description
CH7301A General Description
The CH7301 is a Display controller device which accepts a digital graphics input signal, and encodes and transmits data through a DVI (TMDSTM link) or DFP (Digital flat panel) can also be supported. The device accepts data over one 12-bit wide variable voltage data port which supports four different RGB data formats.
The DVI processor includes a low jitter PLL for generation of the high frequency serialize clock, and all circuitry required to encode, serialize and transmit data. The CH7301 comes in versions able to drive a DFP display at a pixel rate of up to 165MHz, supporting UXGA resolution displays. No scaling of input data is performed on the data output to the DVI device.
CH7301A Maximum Ratings
| Symbol | Description | Min | Typ | Max | Units |
| DVDD, AVDD, TVDD, VDD relative to GND | - 0.5 | 5.0 | V | ||
| Input voltage of all digital pins1 | GND - 0.5 | VDD + 0.5 | V | ||
| TSC | Analog output short circuit duration | Indefinite | Sec | ||
| TAMB | Ambient operating temperature | 0 | 85 | ||
| TSTOR | Storage temperature | - 65 | 150 | ||
| TJ | Junction temperature | 150 | |||
| TVPS | Vapor phase soldering (one minute) | 220 |
CH7301A Features
• DVI Transmitter up to 165MHz
• DVI low jitter PLL
• DVI hot plug detection
• Provides 10-bit high speed video DAC for RGB output
• DAC connection detect
• Programmable power management
• Fully programmable through I2C port
• Complete Windows and DOS driver support
• Low voltage interface support to graphics device
• Offered in a 64-pin LQFP package
• DVI low jitter PLL
• DVI hot plug detection
• Provides 10-bit high speed video DAC for RGB output
• DAC connection detect
• Programmable power management
• Fully programmable through I2C port
• Complete Windows and DOS driver support
• Low voltage interface support to graphics device
• Offered in a 64-pin LQFP package

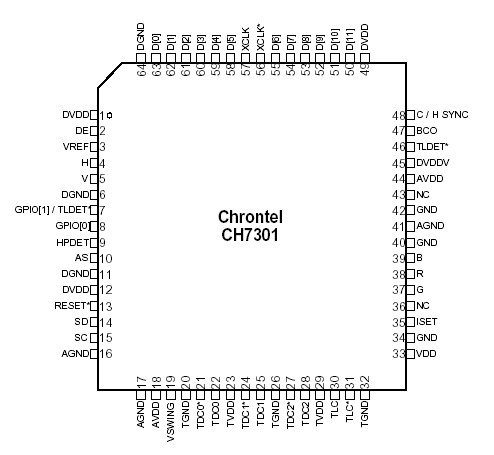

CH7301A Connection Diagram
CH7301A
