CMD95-21VGC/TR9, US $ .12-.17 , Chicago Miniature, CMD95-21VGC/TR9 DataSheet download, circuit diagram from SeekIC.com

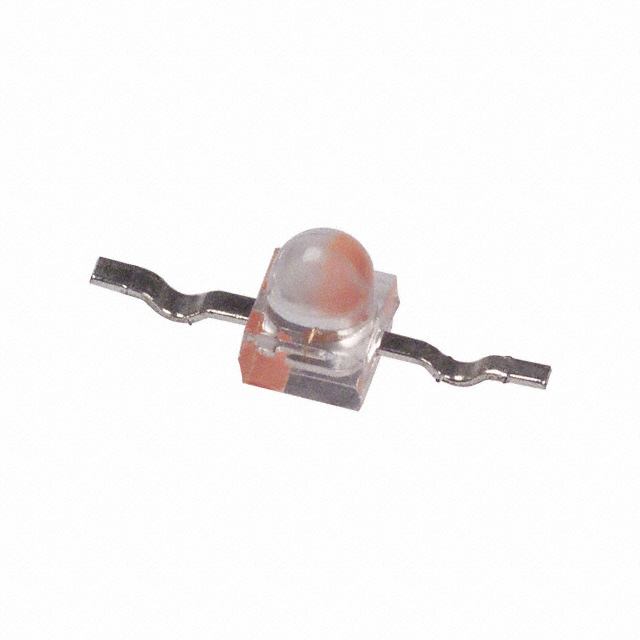

See larger image

SeekIC No. : 0050121 Detail

CMD95-21VGC/TR9: Standard LED - SMD GRN 2.1V 20MA

CMD95-21VGC/TR9 Data Sheet

US $ .12~.17 / Piece | Get Latest Price

Part Number:: CMD95-21VGC/TR9
Mfg:: Chicago Miniature
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000

Unit Price
$.17
$.16
$.14
$.12

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CMD9121SDRCTR10 evaluate
US $.13 - .19 / Piece

Standard LED - SMD Red Water Clr 639nm 495mcd
CMD9121SRC/TR10 evaluate
Standard LED - SMD RED 1.7V 20MA
CMD91-21SRC/TR10 evaluate
LED RED CLEAR Z-BEND SMD

Product Details

Quick Details

LED Size :

2.1 mm x 2.2 mm

Packaging :

Reel

Description

Illumination Color :
Wavelength/Color Temperature :
Lens Color/Style :
Forward Current :
Forward Voltage :
Luminous Intensity :
Viewing Angle :
Packaging : Reel
LED Size : 2.1 mm x 2.2 mm

Pinout

Specifications

Part Number: CMD95-21VGC/TR9
Serial Number: CMD95
LED Type: SMT
Industry Size: Subminiature
Metric Size: 1.8 mm
Output Color: GREEN
Epoxy: CLEAR
Peak Wave length (mA): 570
Minimum MCD: 11.5
Typical MCD: 19.5
Forward Volt (Typical): 2.1
Forward Volt (Max): 2.8
Rate Current (mA): 20
Viewing Angle (°): 25
Operating Temperature:
Storage Temperature:
Power Dissipation: 105
Cont Forward Current Max: 25
RoHS Status: Yes

Parameters:

Technical/Catalog Information	CMD95-21VGC/TR9
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green
Lens Style/Size	Round, 1.7mm
Millicandela Rating	19.5mcd
Voltage - Forward (Vf) Typ	2.1V
Wavelength - Dominant	570nm
Wavelength - Peak	570nm
Current - Test	20mA
Viewing Angle	25°
Lens Type	Clear
Luminous Flux	3 mlm
Package / Case	2.2mm x 2.1mm x 2.7mm
Mounting Type	Surface Mount, Bottom Entry
Packaging	Tape & Reel (TR)
Other Names	CMD95 21VGC TR9 CMD9521VGCTR9 L63405TR ND L63405TRND L63405TR
