CMPD2838

Max Surge Current :
Maximum Power Dissipation :
Product : Switching Diodes
Packaging : Reel
Maximum Reverse Leakage Current : 0.1 uA
Recovery Time : 4 ns
Forward Continuous Current : 0.2 A
Package / Case : SOT-23-3
Forward Voltage Drop : 1.2 V
Operating Temperature Range : - 65 C to + 150 C
Peak Reverse Voltage : 75 V
Configuration : Dual Common Cathode

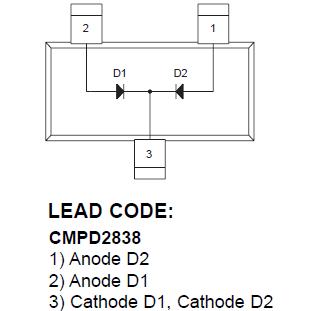

Pinout

Specifications

	SYMBOL		UNITS
Peak Repetitive Reverse Voltage	VRRM	75	V
Average Forward Current	IO	200	mA
Peak Forward Current	IFM	300	A
Power Dissipation	PD	350	mW
Operating and Storage
Junction Temperature	TJ,Tstg	-65 to +150	°C
Thermal Resistance	JA	357	°C/W

Description

The Central Semiconductor CMPD2836 and CMPD2838 types are ultra-high speed switching diodes manufactured by the epitaxial planar process, in an epoxy molded surface mount package, designed for high speed switching applications.
