CMT-1261

BUZZER AUDIO PIEZO 20V SMD

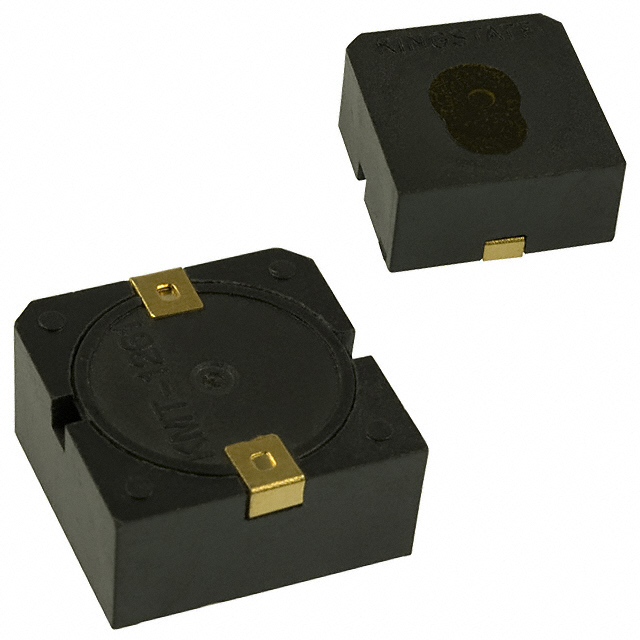

product image

CMT-1261 Picture
See larger image
SeekIC No. : 002845548 Detail

CMT-1261: BUZZER AUDIO PIEZO 20V SMD

CMT-1261 Data Sheet

floor Price/Ceiling Price

US $ .77~1.93 / Piece | Get Latest Price
Part Number:
CMT-1261
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.93
  • $1.6
  • $1.19
  • $.95
  • $.86
  • $.77
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CMT Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Piezo
Input Type: peak-peak Signal Voltage - Rated: 10Vp-p
Voltage Range: 20V (Max) Frequency: 5kHz
Operating Mode: Continuous Dimensions : 17.7 mm x 46 mm x 5 mm
Sound Pressure Level: 88dB @ 10V, 10cm Current - Supply: 10mA
Washable: No Mounting Type: Surface Mount
Termination: Solder Pads Size / Dimension: Square - 16.90mm L x 16.90mm W x 8.30mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Operating Mode: Continuous
Washable: No
Voltage Range: 20V (Max)
Manufacturer: CUI Inc
Series: CMT
Input Type: peak-peak Signal
Mounting Type: Surface Mount
Termination: Solder Pads
Voltage - Rated: 10Vp-p
Sound Pressure Level: 88dB @ 10V, 10cm
Current - Supply: 10mA
Size / Dimension: Square - 16.90mm L x 16.90mm W x 8.30mm H
Packaging: Tube
Frequency: 5kHz


Specifications

  • recommended circuits: click here
  • operating voltage: 20Vp-p
  • current consumption: 10mA
  • sound pressure level: 88dB
  • electrostatic capacity: 15,000 ±30%
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +80°C
  • dimensions (LxWxH): 16.9 mm x 16.9 mm x 7.8 mm
  • weight: 2.6 grams



    • Parameters:

    Technical/Catalog InformationCMT-1261
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Transducer, External Drive
    Sound Pressure Level88dB
    Mounting TypeSurface Mount
    Capacitance @ Frequency15000pF @ 1kHz
    Frequency5kHz
    PackagingTube
    Operating ModeContinuous
    Voltage Range20Vp-p (max)
    Voltage - Rated 10Vp-p
    Current Rating10mA
    Size / DimensionSquare - 16.9mm L x 16.9mm W x 7.8mm H
    TerminationSolder Pads
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CMT 1261
    CMT1261
    102 1194 5 ND
    10211945ND
    102-1194-5
