CND2047

Features:

Very broad operating frequency range
Low power dissipation: 300mW
Single supply operation: 3V to 5V
High input sensitivity:
 -10dBm@8 Ghz at 25°C and
 -5dBm@8Ghz at 125°C
Low phase noise: -139dBc/Hz at 1KHz


Pinout

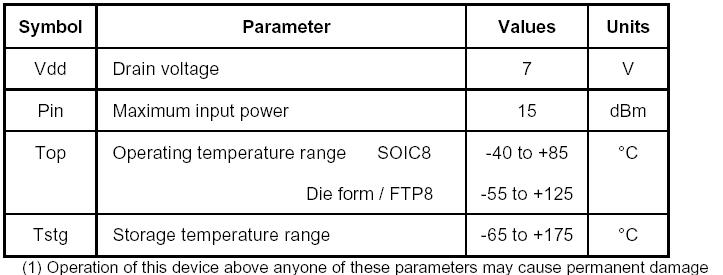

Specifications

Tamb= 25°C



Description

The CND2047 is a low power consumption very high speed divider by 4 GaAs prescaler manufactured with a 0.7µm self aligned implanted MESFET process.
The design is full differential input/output that allows direct drive into 50W load.
The CND2047 is available in chip form and in 2 packages form:
* low cost SOIC8 plastic package
* 8 lead Flat Pack ceramic surface mount package
