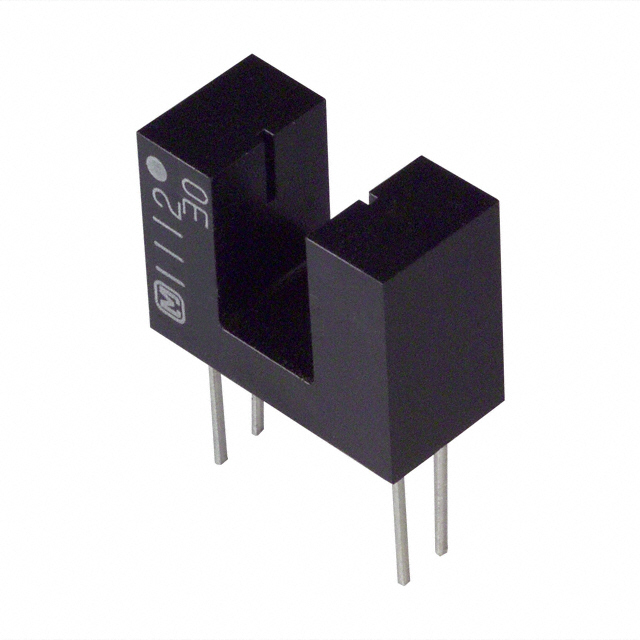

CNZ1112: PHOTO INTERRUPTER 5MM IO4-9

CNZ1112 Data Sheet

Get Latest Price

Part Number:: CNZ1112
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CNZ1002 evaluate
US $.21 - .5 / Piece

PHOTO INTERRUPTER 0.9MM IO4-1
CNZ1021 evaluate
PHOTO-INTERRUPTER 3MM SLOT PCB
CNZ1022 evaluate
Features: Position detection accuracy : 0.25 mmGap width : 3 mm (CNZ1021, CNZ1022, CNZ1023) 5 mm (...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Sensing Distance:	0.197" (5mm)	Sensing Method:	Transmissive
Output Configuration:	Phototransistor	Package / Case :	HVQFN EP
Current - DC Forward (If):	50mA	Current - Collector (Ic) (Max):	20mA
Voltage - Collector Emitter Breakdown (Max):	30V	Response Time:	6µs, 6µs
Mounting Type:	Through Hole	Package / Case:	PCB Mount

Description

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Mounting Type: Through Hole
Package / Case: PCB Mount
Voltage - Collector Emitter Breakdown (Max): 30V
Current - DC Forward (If): 50mA
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Sensing Distance: 0.197" (5mm)
Response Time: 6µs, 6µs

Features:

`Highly precise position detection : 0.3 mm
`Wide gap between emitting and detecting elements, suitable for thick plate detection
`Fast response : tr, tf = 6 s (typ.)
`Small output current variation against change in temperature

Pinout

Connection Diagram

Specifications

(Ta = 25°C)
Connection Diagram

Parameters:

Technical/Catalog Information	CNZ1112
Vendor	Panasonic - SSG
Category	Sensors, Transducers
Sensing Distance	0.197" (5mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	6s , 6s <!--6us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CNZ1112 CNZ1112
