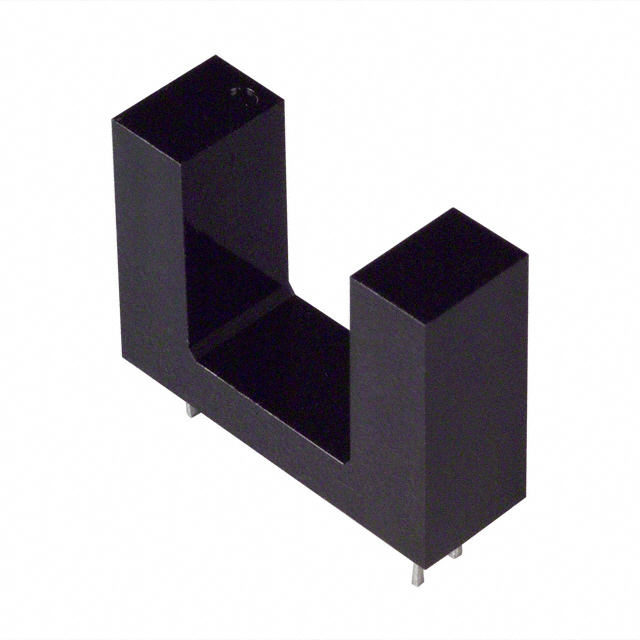

CNZ1120

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Current - Collector (Ic) (Max): 20mA
Voltage - Collector Emitter Breakdown (Max): 20V
Mounting Type: Through Hole
Package / Case: PCB Mount
Current - DC Forward (If): 50mA
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Response Time: 6µs, 6µs
Sensing Distance: 0.394" (10mm)


Features:

`Wide gap between emitting and detecting elements, suitable for thick plate detection Gap : 10mm
`Fast response : t_r, t_f = 6 s (typ.)
`The external case is molded using visible light cutoff resin. The case has no openings, so the photosensor is not easily susceptible to output attenuation resulting from dust or particles



Pinout




Specifications

(Ta = 25°C)



Parameters:

Technical/Catalog Information	CNZ1120
Vendor	Panasonic - SSG
Category	Sensors, Transducers
Sensing Distance	0.394" (10mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	20V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	6s , 6s <!--6us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-5°C ~ 60°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CNZ1120 CNZ1120
