General Description
COP8TAC9 General Description
The COP8TAB9/TAC9 Flash microcontrollers are highly integrated COP8™ Feature core devices, with 2k or 4k Flash memory and advanced features. These single-chip CMOS devices are suited for applications requiring a full featured, in-system reprogrammable controller with moderate memory and low EMI. The same device is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.
A Masked ROM device (COP8TAB5/TAC5) has been developed and provides identical features except for the Boot ROM and Flash Memory and related features such as In- System Programming and reprogrammability. The ROM device is supported, in emulation, by this device.
The lack of the Boot ROM and Flash Memory in the ROM device, prompts us to caution the user, utilizing the COP8TAx9 Flash based devices during development for applications to be produced using the COP8TAx5 ROM devices, to ensure that code contains NO calls to Boot ROM functions prior to submission for ROM generation. Instances of the JSRB instruction in ROM based devices will be executed as a JSR instruction to a location in the first 256 bytes of Program Memory.
COP8TAC9 Maximum Ratings
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (VCC) 3.5V
Voltage at Any Pin −0.3V to VCC +0.3V
ESD Protection Level
(Human Body Model) 2 kV
(Machine Model) 200V
Total Current into VCC Pin (Source) 80 mA
Total Current out of GND Pin
(Sink) 60 mA
Storage Temperature Range −65 to +140
Note 1: Absolute maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications are not ensured when operating the device at absolute maximum ratings.
Supply Voltage (VCC) 3.5V
Voltage at Any Pin −0.3V to VCC +0.3V
ESD Protection Level
(Human Body Model) 2 kV
(Machine Model) 200V
Total Current into VCC Pin (Source) 80 mA
Total Current out of GND Pin
(Sink) 60 mA
Storage Temperature Range −65 to +140
Note 1: Absolute maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications are not ensured when operating the device at absolute maximum ratings.
COP8TAC9 Features
` 2k bytes or 4k bytes Flash Program Memory, with Security Feature, organized in 512 byte pages that can be erased or written individually
` 128 bytes volatile RAM
` 2.25V 2.75V In-System Programmability of Flash
` High endurance - 20k Erase/Write Cycles
` Superior Data Retention - 100 years
` Crystal Oscillator at 15 MHz or Integrated RC Oscillator at 10MHz
` Clock Prescaler For Adjusting Power Dissipation to Processing Requirements
` Power-On Reset
` HALT/IDLE Power Save Modes
` One 16-bit timer:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` High Current I/Os
- 10 mA @ 0.4V
` Single supply operation:
- 2.25V2.75V (−40 to +85)
` Quiet Design (low radiated emissions)
` Multi-Input Wake-Up with optional interrupts
` MICROWIRE/PLUS (Serial Peripheral Interface Compatible)
` ACCESS.Bus Synchronous Serial Interface (compatible with I2C™ and SMBus™)
- Master Mode and Slave Mode
- Full Master Mode Capability
- Bus Speed Up To 400KBits/Sec
- Low Power Mode With Wake-Up Detection
- Optional 1.8V ACCESS.Bus Compatibility
` Eight multi-source vectored interrupts servicing:
- External Interrupt
- Idle Timer T0
- One Timers (with 2 interrupts)
- MICROWIRE/PLUS Serial peripheral interface
- ACCESS.Bus/I2C/SMBus compatible Synchronous
Serial Interface
- Multi-Input Wake-Up
- Software Trap
` Idle Timer with programmable interrupt interval
` 8-bit Stack Pointer SP (stack in RAM)
` Two 8-bit Register Indirect Data Memory Pointers
`True bit manipulation
` WATCHDOG and Clock Monitor logic
` Software selectable I/O options
- TRI-STATE Output/High Impedance Input
- Push-Pull Output
- Weak Pull Up Input
` Schmitt trigger inputs on I/O ports
` Temperature range: 40 to +85
` Packaging: 20 and 28 SOIC and 44 LLP
` 128 bytes volatile RAM
` 2.25V 2.75V In-System Programmability of Flash
` High endurance - 20k Erase/Write Cycles
` Superior Data Retention - 100 years
` Crystal Oscillator at 15 MHz or Integrated RC Oscillator at 10MHz
` Clock Prescaler For Adjusting Power Dissipation to Processing Requirements
` Power-On Reset
` HALT/IDLE Power Save Modes
` One 16-bit timer:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` High Current I/Os
- 10 mA @ 0.4V
` Single supply operation:
- 2.25V2.75V (−40 to +85)
` Quiet Design (low radiated emissions)
` Multi-Input Wake-Up with optional interrupts
` MICROWIRE/PLUS (Serial Peripheral Interface Compatible)
` ACCESS.Bus Synchronous Serial Interface (compatible with I2C™ and SMBus™)
- Master Mode and Slave Mode
- Full Master Mode Capability
- Bus Speed Up To 400KBits/Sec
- Low Power Mode With Wake-Up Detection
- Optional 1.8V ACCESS.Bus Compatibility
` Eight multi-source vectored interrupts servicing:
- External Interrupt
- Idle Timer T0
- One Timers (with 2 interrupts)
- MICROWIRE/PLUS Serial peripheral interface
- ACCESS.Bus/I2C/SMBus compatible Synchronous
Serial Interface
- Multi-Input Wake-Up
- Software Trap
` Idle Timer with programmable interrupt interval
` 8-bit Stack Pointer SP (stack in RAM)
` Two 8-bit Register Indirect Data Memory Pointers
`True bit manipulation
` WATCHDOG and Clock Monitor logic
` Software selectable I/O options
- TRI-STATE Output/High Impedance Input
- Push-Pull Output
- Weak Pull Up Input
` Schmitt trigger inputs on I/O ports
` Temperature range: 40 to +85
` Packaging: 20 and 28 SOIC and 44 LLP

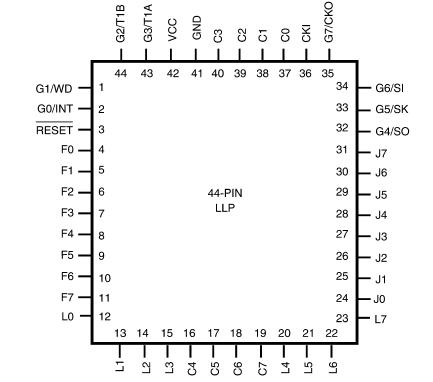

COP8TAC9 Connection Diagram
COP8TAC9
PDF/DataSheet Download
- Datasheet: COP8TAC9
- File Size: 1120034 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
