Part Number: COP988GD
Description: The COP888GD ROM based microcontrollers are highly integrated COP8™ Feature core devices with 16...
- Table of contents:
COP988GD
-
Suppliers
DataSheet
General Description
COP988GD General Description
The COP888GD ROM based microcontrollers are highly integrated COP8™ Feature core devices with 16k memory and advanced features including an A/D Converter. These multi-chip CMOS devices are suited for applications requiring a full featured controller with an 8-bit A/D converter, and as pre-production devices for a masked ROM design. Pin and software compatible 16k or 32k OTP EPROM versions are available (COP87L88GD/RD Family) for pre-production, and for use with a range of COP8 software and hardware development tools. Family features include an 8-bit memory mapped architecture, 10 MHz CKI with 1µs instruction cycle, three multifunction 16-bit timer/counters, MICROWIRE/PLUS™ serial I/O, one 8-bit/8-channel A/D converter with prescaler and both differential and single ended modes, two power saving HALT/IDLE modes, MIWU, idle timer, high current outputs, software selectable I/O options, WATCHDOG™ timer and Clock Monitor, 2.5V to 5.5V operation, program code security, and 44 pin package.
Devices included in this datasheet are:
COP988GD Maximum Ratings
| Supply Voltage (VCC) Voltage at Any Pin Total Current into VCC Pin (Source) Total Current out of GND Pin (Sink) Storage Temperature Range |
7.0V −0.3V to VCC + 0.3V 100 mA 110 mA −65°C to +140°C |
COP988GD Features
` 8-channel A/D converter with prescaler and both differential and single ended modes
` Three 16-bit timers, each with two 16-bit registers supporting:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` Quiet design (low radiated emissions)
`16 kbytes on-board ROM
`256 bytes on-board RAM
` Three 16-bit timers, each with two 16-bit registers supporting:
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
` Quiet design (low radiated emissions)
`16 kbytes on-board ROM
`256 bytes on-board RAM

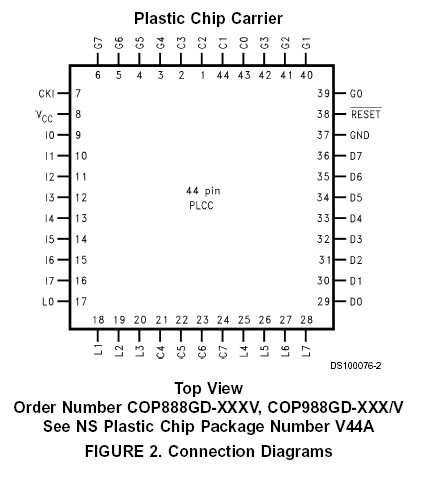

COP988GD Connection Diagram
COP988GD
PDF/DataSheet Download
- Datasheet: COP988GD
- File Size: 392859 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
