CQY36N

Infrared Emitters 55 Degree 1.5mW

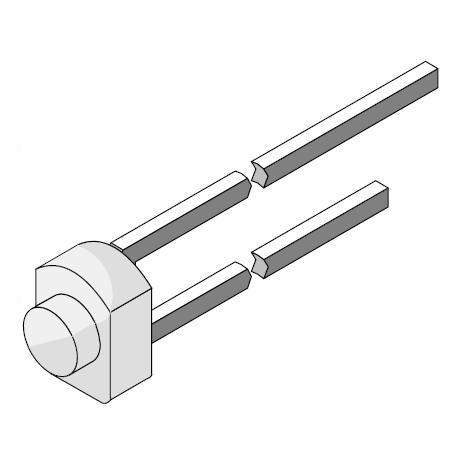

product image

CQY36N Picture
See larger image
SeekIC No. : 0018783 Detail

CQY36N: Infrared Emitters 55 Degree 1.5mW

CQY36N Data Sheet

floor Price/Ceiling Price

US $ .18~.32 / Piece | Get Latest Price
Part Number:
CQY36N
Mfg:
Vishay Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.32
  • $.26
  • $.2
  • $.18
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Wavelength : 950 nm Radiant Intensity : 1.5 mW/sr
Maximum Operating Temperature : + 100 C Package / Case : T-3/4
Packaging : Tube

Description

Beam Angle :
Minimum Operating Temperature :
Maximum Operating Temperature : + 100 C
Packaging : Tube
Wavelength : 950 nm
Package / Case : T-3/4
Radiant Intensity : 1.5 mW/sr


Features:

 Suitable for pulse operation
 Standard T3/4 flat miniature package
 Wide angle of half intensity = ± 55°
Peak wavelength = 950 nm
 Good spectral matching to Si photodetectors




Application

Radiation source in near infrared range

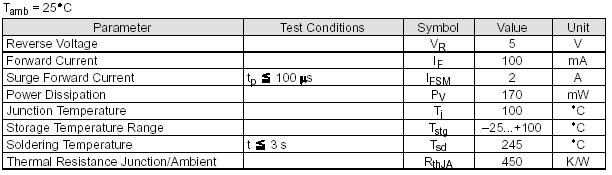

Specifications

Connection Diagram






Description

CQY36N is a standard GaAs infrared emitting diode in a miniature top view plastic package.
Its flat window provides a wide aperture making it ideal for use with external optics.
The diode is case compatible to the BPW16N phototransistor, allowing the user to assemble his own optical interrupters.
