Product Details

Description



Features:

· Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF:rise time (typ.) 3 ns fall time (typ.) 3 ns
· Very low power consumption:7 Watt with 25 MHz square wave
· Minimum small signal bandwidth:100 MHz
· Very fast slew rate 12000 V/ms
· Excellent grey-scale linearity
· Internal supply decoupling per channel for optimum EMI performance and minimal crosstalk
· Gold metallization ensures excellent reliability
· No negative supply required in the final stage.


Application

· Cathode-ray tube (CRT) drivers in high-resolution colour monitors
· For 1280 x 1024 pixels (good picture quality) with single PNP buffer
· For 1024 x 768 pixels (acceptable picture quality) when directly driven from the video pre-amp IC.

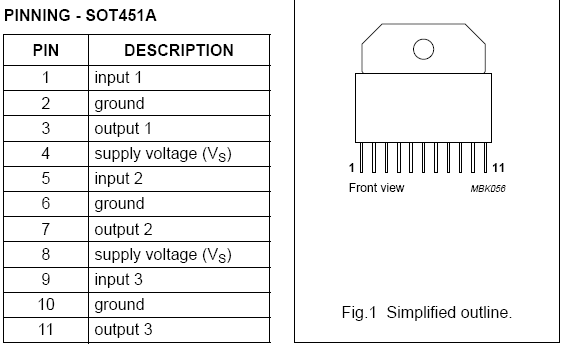

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER
MIN.
MAX.
UNIT
Per amplifier
VS supply voltage (DC)
-
80
V
Tmb operating mounting base
temperature
-20
+100
°C
Tstg storage temperature
-40
+125
°C



Description

Hybrid amplifier module comprising three video amplifiers in a SOT451A package.
