CR6728A

Features:

` Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF: rise time (typ.) 2.5 ns fall time (typ.) 2.1 ns
` Low power consumption: 11 W with 25 MHz square wave
` Minimum small signal bandwidth: 140 MHz at 1 V (p-p) or 120 MHz at 40 V (p-p)
` Very fast slew rate: 16000 V/ms
` Internal smearing compensation
` Excellent grey-scale linearity
` Unconditional stability
` Gold metallization ensures excellent reliability.


Application

· Cathode-ray tube (CRT) drivers in high-resolution colour monitors.

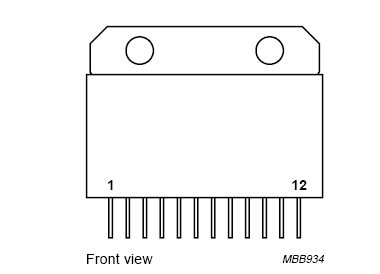

Pinout




Description

Hybrid amplifier module comprising three video amplifiers in a SOT347 package.
