CR6727A

Features: · Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF: rise time (typ.) 2.5 ns fall time (typ.) 2.1 ns· Low power consumption: 10 W with 25 MHz square wave· Minimum small signal bandwidth: 140 MHz at 1 V (p-p) or 120 MHz at 40 V (p-p)· Very fast slew rate: 16000 V/ms· Inter...

product image

CR6727A Picture
See larger image
SeekIC No. : 004315986 Detail

CR6727A: Features: · Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF: rise time (typ.) 2.5 ns fall time (typ.) 2.1 ns· Low power consumption: 10 W with 25 MHz square wave· Minimum small sig...

CR6727A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CR6727A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Transition times (10 to 90%) with 45 V (p-p) swing and CL = 10 pF: rise time (typ.) 2.5 ns fall time (typ.) 2.1 ns
· Low power consumption: 10 W with 25 MHz square wave
· Minimum small signal bandwidth: 140 MHz at 1 V (p-p) or 120 MHz at 40 V (p-p)
· Very fast slew rate: 16000 V/ms
· Internal smearing compensation
· Excellent grey-scale linearity
· Unconditional stability
· Gold metallization ensures excellent reliability.


Application

· Cathode-ray tube (CRT) drivers in high-resolution colour monitors.

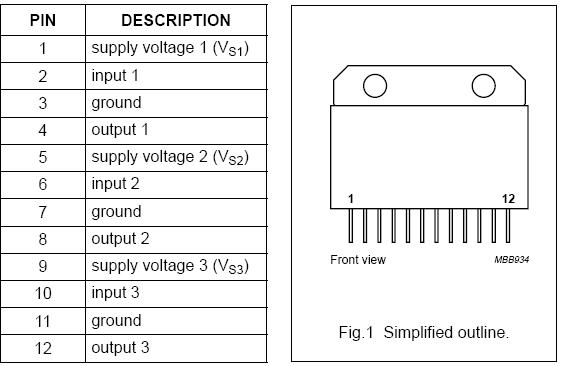

Pinout

Connection Diagram


Description

Hybrid amplifier module comprising three video amplifiers in a SOT347 package.
