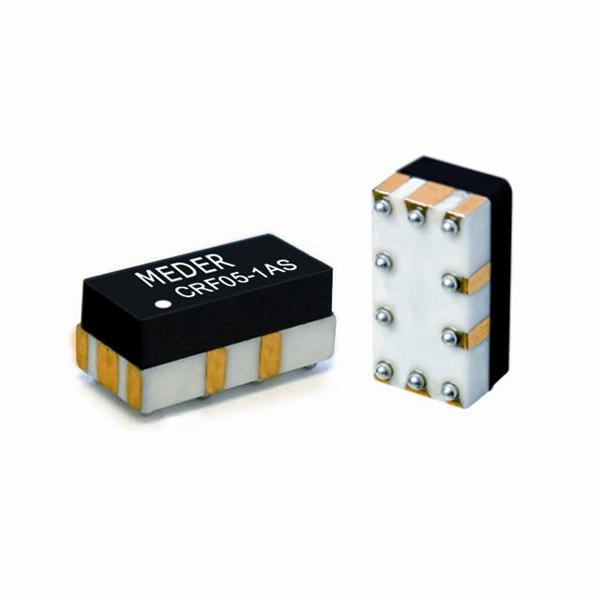

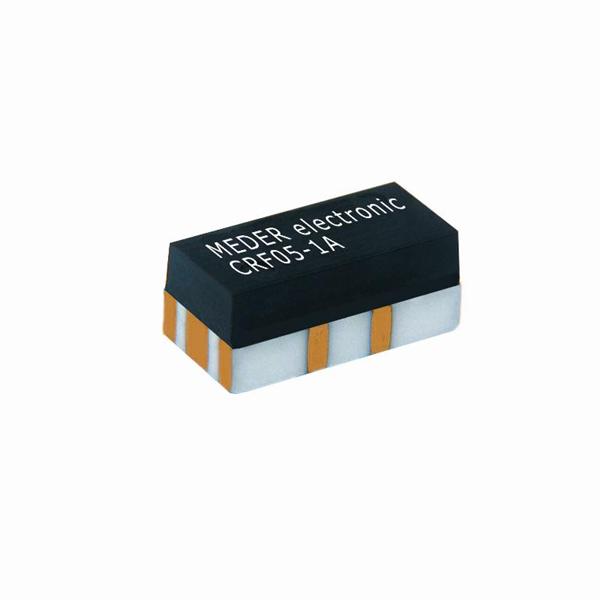

Reed Relay 1 Form A 5V SMT BGA High Frequency
CRF05-1AS: Reed Relay 1 Form A 5V SMT BGA High Frequency
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Contact Form : | 1 Form A (SPST-NO) | Coil Voltage : | 5 VDC |
| Maximum Switched Power : | 10 W | Maximum Switched Current : | 0.5 A |
| Coil Resistance : | 150 Ohms |
| Technical/Catalog Information | CRF05-1AS |
| Vendor | Meder Electronic Inc (VA) |
| Category | Relays |
| Relay Type | RF |
| Mounting Type | Surface Mount |
| Termination Style | BGA |
| Circuit | SPST-NO (1 Form A) |
| Contact Rating @ Voltage | 0.5A @ 170VAC/DC |
| Coil Voltage | 5VDC |
| Control Off Voltage (Min) | 0.75 VDC |
| Control On Voltage (Max) | 3.75 VDC |
| Coil Current | 33.3mA |
| Coil Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CRF05 1AS CRF051AS 374 1042 1 ND 37410421ND 374-1042-1 |
