Part Number: CS98200





Package Cooled: QFP

D/C: 06+

Description: CS98200 is a highly-integrated processor that provides all of the audio and video processing functions needed for the next generation of f...


Urgent Purchase

CS98200 General Description


CS98200 is a highly-integrated processor that provides all of the audio and video processing functions needed for the next generation of feature-rich DVD players, DVD receivers and Internet DVD applications. Tomorrow's features available today in a single chip solution are DVD-Audio, MP3, WMA®, MPEG-2/4: AAC, Kodak Picture CD™, Dolby Digital™, Dolby ProLogic II™, and DTS Digital Surround™ decoding. It supports most popular CD formats, DVD navigation, disk control, video decoding and up to eight channels of audio output. An extension of Cirrus' CS98000 DVD product line, the CS98200 integrates six 10-bit video digital-to-analog converters (DACs) and TV encoding with progressive scan functionality. Progressive scan video provides high resolution and eliminates the "flickering" effect present in traditional video playback. Other features enabled by this integrated chip include karaoke functionality and video special effects. Its extended feature set makes it ideal for your next innovative DVD application . today.

Need to get your product to market quickly? Cirrus' Total Entertainment platform solutions include DVD front-end controllers, MPEG encoders, audio DSPs, and digital power amplifiers . everything you need to launch your product before the competition. CS98200 is a Cirrus Total Entertainment Total-E™ IC solution specifically designed for consumer entertainment electronics.

CS98200 Maximum Ratings

Symbol
Description
Min.
Max.
Unit
VDDIO Power Supply Voltage on I/O ring
-0.5
4.6
Volts
VDDCORE Power Supply Voltage on core logic and PLL
-0.5
3.6
Volts
VI Digital Input Applied Voltage (power applied)
-0.5
5.5
Volts
II Digital Input Forced Current
-10
10
mA
IO Digital Output Forced Current
-50
50
mA
TSOL Lead Soldering Temperature
260
TVSOL Vapor Phase Soldering Temperature
235
TSTOR Storage Temperature (no power applied)
-40
125
TAMB Ambient Temperature (power applied)
0
70
Ptotal Total Power consumption
-
2.2
W

CS98200 Features

·DVD-Video, VCD, VCD 2.0, SVCD, CD, and other popular standards
·DVD-Audio including CPPM and Verance™ watermark protection
·MPEG-1, MPEG-2, and leading edge MPEG-4 audio and video decoding
·Kodak Picture CD
·Flexible ATAPI or AV bus DVD loader support with no additional logic
·Dual 32-bit RISC processors, supported by RTOS, C/C++ compilers, and source level debuggers
·32-bit DSP capable of running AC-3, MPEG, DTS, MP3, WMA, and AAC audio decode algorithms
·High quality integrated video encoder with six 10-bit video D/A converters
·Component (RGB or YUV) or composite & S-Video output
·Interlaced (PAL/NTSC) or progressive (480p) output, with Macrovision™ copy protection
·CCIR656 video I/O for video capture, PVR and DVR type applications, picture-in-picture support
·IEC60958/937 (S/PDIF) & simultaneous PCM output
·5.1 downmix, karaoke echo mix, pitch shift, and many other effects
·PAL / NTSC transcoding
·Dual 16550 compatible UARTs
·ATAPI/ IDE interface for hard disk, audio server, and Personal Video Recorder (PVR) applications
·240-pin MQFP package

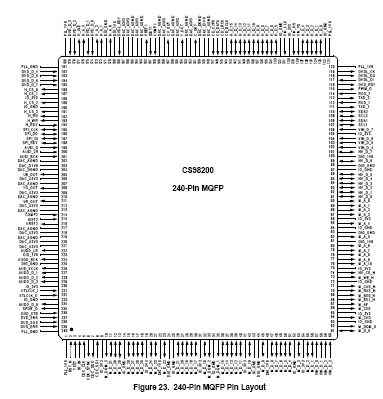

CS98200 Connection Diagram

CS98200 Connection Diagram
